TWS logfile adapter is installed in version TWS 8.2 by so called Tivoli Plus module, which provides events parsing to TEC. The logadapters installation includes a set of predefined message formats, event classes, TEC rules and actions that can be taken of particular types of messages.
|
|
Installation directory
cd /opt/tivoli/lcf/bin/aix4-r1/TME/TEC/adapters/bin/
Start stop
./tivoli/lcf/bin/aix4-r1/TME/TEC/adapters/bin/init.tecad_logfile [start|stop]
TWS logfile adapter is installed in two directories:
binary and scripts
/opt/tivoli/lcf//bin/aix4-r1/TME/TEC/adapters/bin/
drwxr-xr-x 2 root system 4096 Mar 08 2005 ./ drwxr-xr-x 4 root system 256 Jan 05 2005 ../ -rwxr-xr-x 1 root system 11161 Jan 05 2005 init.tec_gwr* -rwxr-xr-x 1 root system 32305 Jan 24 2005 init.tecad_logfile* -rwxr-xr-x 1 root system 339951 Jan 05 2005 tec_gwr* -rwxr-xr-x 1 root system 1694 Jan 05 2005 tec_gwr.diag* -rwxr-xr-x 1 root system 59179 Jan 05 2005 tecad-remove-gwr.sh* -rwxr-xr-x 1 root system 67984 Jan 24 2005 tecad-remove-logfile.sh* -rwxr-xr-x 1 root system 744882 Jan 24 2005 tecad_logfile* -rwxr-xr-x 1 root system 2884 Jan 24 2005 update_conf*
configuration files
/opt/tivoli/lcf/bin/aix4-r1/TME/TEC/adapters/etc/
root@nti2171:/opt/tivoli/lcf # find . -name "tecad*"
./bin/aix4-r1/TME/TEC/adapters/etc/C/tecad_logfile.fmt
./bin/aix4-r1/TME/TEC/adapters/etc/C/tecad_logfile.fmt.pre.MAESTRO
./bin/aix4-r1/TME/TEC/adapters/etc/de/tecad_logfile.fmt
./bin/aix4-r1/TME/TEC/adapters/etc/es/tecad_logfile.fmt
./bin/aix4-r1/TME/TEC/adapters/etc/fr/tecad_logfile.fmt
./bin/aix4-r1/TME/TEC/adapters/etc/it/tecad_logfile.fmt
./bin/aix4-r1/TME/TEC/adapters/etc/ja/tecad_logfile.fmt
./bin/aix4-r1/TME/TEC/adapters/etc/ko/tecad_logfile.fmt
./bin/aix4-r1/TME/TEC/adapters/etc/pt_Br/tecad_logfile.fmt
./bin/aix4-r1/TME/TEC/adapters/etc/zh_CN/tecad_logfile.fmt
./bin/aix4-r1/TME/TEC/adapters/etc/zh_TW/tecad_logfile.fmt
tecad_logfile.conf
./bin/aix4-r1/TME/TEC/adapters/etc/tecad_logfile.err
./bin/aix4-r1/TME/TEC/adapters/etc/tecad_logfile.cds
./bin/aix4-r1/TME/TEC/adapters/etc/tecad_logfile.conf.pre.MAESTRO
./bin/aix4-r1/TME/TEC/adapters/etc/tecad_logfile.cds.pre.MAESTRO
./bin/aix4-r1/TME/TEC/adapters/etc/tecad_logfile.err.ORIG
./bin/aix4-r1/TME/TEC/adapters/etc/tecad_logfile.cds.post.MAESTRO
./bin/aix4-r1/TME/TEC/adapters/etc/tecad_logfile.conf.post.MAESTRO
Startup files include
Configuration file:
root@nti2171:/opt/tivoli/lcf/bin/aix4-r1/TME/TEC/adapters/etc # ll total 576 drwxr-xr-x 12 root system 4096 May 01 2006 ./ drwxr-xr-x 4 root system 256 Jan 05 2005 ../ drwxr-xr-x 2 root system 256 Jan 24 2005 C/ drwxr-xr-x 2 root system 256 Jan 24 2005 de/ drwxr-xr-x 2 root system 256 Jan 24 2005 es/ drwxr-xr-x 2 root system 256 Jan 24 2005 fr/ drwxr-xr-x 2 root system 256 Jan 24 2005 it/ drwxr-xr-x 2 root system 256 Jan 24 2005 ja/ drwxr-xr-x 2 root system 256 Jan 24 2005 ko/ drwxr-xr-x 2 root system 256 Jan 24 2005 pt_Br/ -rw-r--r-- 1 root system 87224 Jan 24 2005 tecad_logfile.cds -rw-r--r-- 1 root system 87224 Jan 24 2005 tecad_logfile.cds.post.MAESTRO -rw-r--r-- 1 root system 87224 Jan 24 2005 tecad_logfile.cds.pre.MAESTRO -rw-r--r-- 1 root system 400 Jan 24 2005 tecad_logfile.conf -rw-r--r-- 1 root system 400 Jan 24 2005 tecad_logfile.conf.post.MAESTRO -rw-r--r-- 1 root system 400 Jan 24 2005 tecad_logfile.conf.pre.MAESTRO -rw-r--r-- 1 root system 2497 Sep 07 2005 tecad_logfile.err -rw-r--r-- 1 root system 2541 May 26 2005 tecad_logfile.err.ORIG drwxr-xr-x 2 root system 256 Jan 24 2005 zh_CN/ drwxr-xr-x 2 root system 256 Jan 24 2005 zh_TW/File itself:
# Wed Jan 5 10:28:52 2005 # # tecad_logfile Configuration # TransportList=t1_ t1_Type=LCF t1_Channels=c1_ c1_ServerLocation=@EventServer EventMaxSize=4096 BufEvtPath=/etc/Tivoli/tec/[email protected] PollInterval=30 Pre37Server=no FQDomain=NO # Filter:Class=Logfile_Base Filter:Class=Logfile_Sendmail Filter:Class=Amd_Unmounted Filter:Class=Amd_Mounted LogSources=/opt/tivoli/TWS/event.log
Cache: the file specified by the BufEvtPath parameter in the tecad_logfile.conf file,
/etc/Tivoli/tec/[email protected]
When you have installed the TEC logfile adapter on a workstation, a set of configuration steps must be performed to enable that adapter to manage the job scheduling events. For information on how to install the TEC logfile adapter, refer to the IBM(R) Tivoli Enterprise Console(R) Installation Guide.
The Tivoli Workload Scheduler Plus Module provides you with two tasks that allow you to automatically perform this setup activity, the Configure non-TME adapter task (if you installed a non-TME logfile adapter on the workstation) or the Configure non-TME adapter task (if you installed a TME logfile adapter on the workstation). These tasks perform the following actions on the TEC logfile adapter:
FILE = TWS_Home/event.log
EVENTS = 51 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117
118 119 120 121 122 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165
201 202 203 204 251 252 301
This file contains the configuration information used by the batchman
process to determine which information must be logged and where. The
value of the FILE field contains the path and name of the log
file for the scheduling events while the EVENTS field contains
all event numbers that will be logged by the batchman process.tec_adapter_installation_path/etc/tecad_logfile.conf
by adding the Tivoli Workload Scheduler log file specification in the
Logsource field:
LogSource=TWS_Home/event.log
and specifying the value for the PollInterval as follows:
PollInterval=10This file contains the configuration information necessary for the TEC logfile adapter to gather the scheduling information logged by the batchman process.
tec_adapter_installation_path/etc/locale_directory/tecad_logfile.fmt.pre.MAESTROof the TEC logfile adapter FMT file
tec_adapter_installation_path/etc/locale_directory/tecad_logfile.fmtand adds to this tecad_logfile.fmt file the format definitions for scheduling events provided by the Tivoli Workload Scheduler Plus Module and stored in the maestro.fmt (if on Unix platform) or maestront.fmt (if on Windows platform). In this way the TEC logfile adapter is enabled to manage the new formats provided by the Tivoli Workload Scheduler Plus Module for the scheduling events.
tec_adapter_installation_path/etc/locale_directory/tecad_logfile.cds.pre.MAESTROof the TEC logfile adapter Class Definition Statement (CDS) file
tec_adapter_installation_path/etc/locale_directory/tecad_logfile.cdsand generates again the new CDS file from the tecad_logfile.fmt updated with the formats provided by the Tivoli Workload Scheduler Plus Module. In this way the TEC logfile adapter is enabled to map incoming raw events to new scheduling event classes and to define these events' attributes before forwarding the events to the TEC event server.
To perform these setup, activities using the tasks provided by the Tivoli Workload Scheduler Plus Module open the TWS Plus for Tivoli window and perform the instructions provided in the following sections according to the kind of TEC logfile adapter you installed on the workstation.
Note:Restart the Tivoli Workload Scheduler processes on the workstation to enable the batchman process to log the scheduling information in the log file.
To configure a non-TME logfile adapter on a Tivoli Workload Scheduler system:
This section describes the events that are generated by using to the information stored in the log file specified in the BmEvents.conf configuration file stored on the system where you installed the TEC logfile adapter.
An important aspect to be considered when configuring the integration with the TEC using event adapters is whether to monitor only the master domain manager or every Tivoli Workload Scheduler agent.
If you integrate only the master domain manager, all the events coming from the entire scheduling environment are reported because the log file on a master domain manager logs the information from the entire scheduling network. On the TEC event server and TEC event console all events will therefore look as if they come from the master domain manager, regardless of which Tivoli Workload Scheduler agent they originate from. The workstation name, job name, and job stream name are still reported to TEC, but as a part of the message inside the event.
If, instead, you install a TEC logfile adapter on every Tivoli Workload Scheduler agent, this results in a duplication of events coming from the master domain manager, and from each agent. Creating and using a TEC that detects these duplicated events, based on job_name, job_cpu, schedule_name, and schedule_cpu, and keeps just the event coming from the log file on the Tivoli Workload Scheduler agent, helps you to handle this problem. The same consideration also applies if you decide to integrate the backup master domain manager, if defined, because the log file on a backup master domain manager logs the information from the entire scheduling network. For information on creating new rules for the TEC refer to the IBM Tivoli Enterprise Console Rule Builder's Guide. For information on how to define a backup master domain manager refer to IBM Tivoli Workload Scheduler: Planning and Installation Guide.

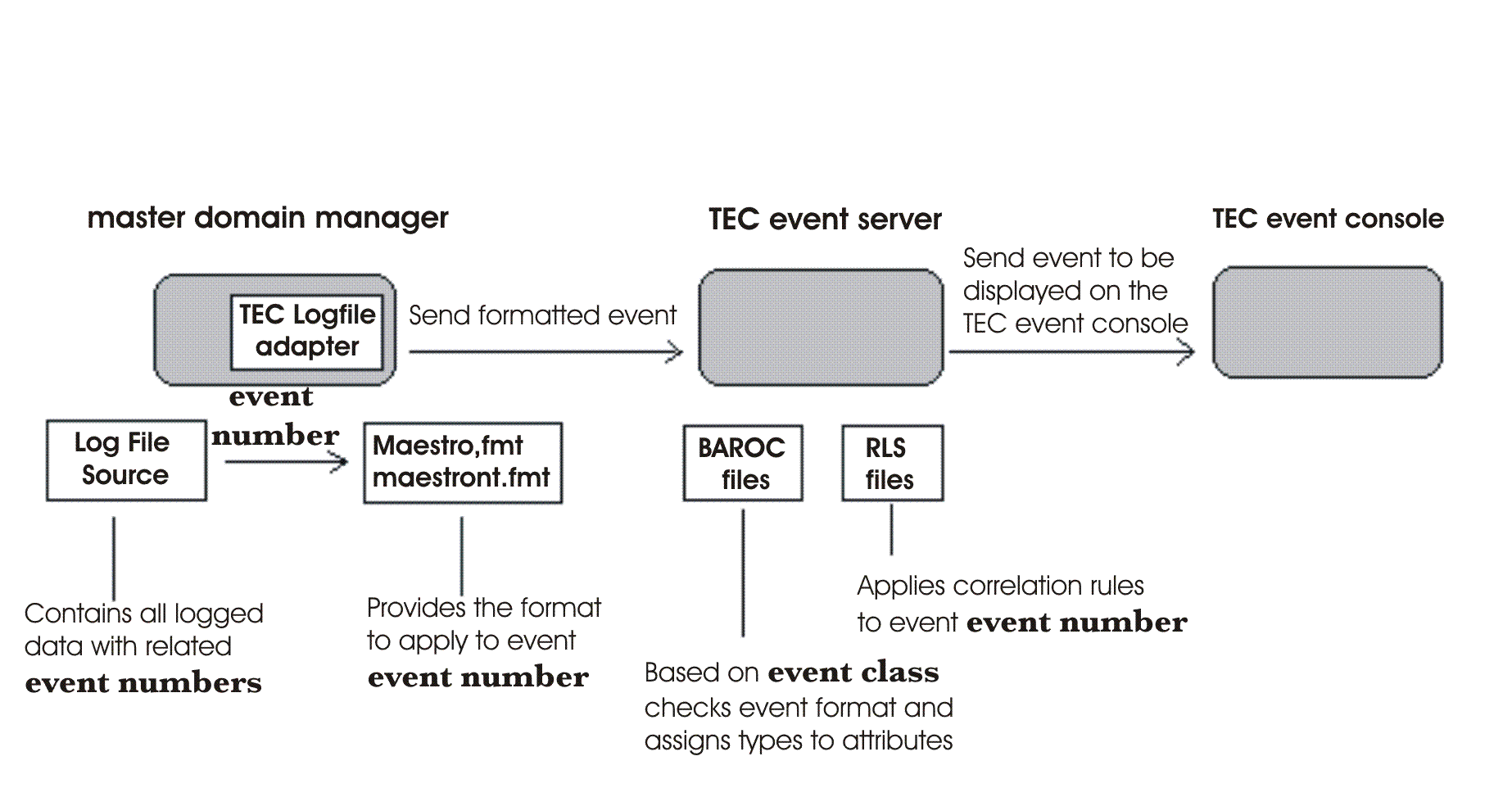

Figure 19 describes how an event is generated. It shows the TEC logfile adapter installed on the master domain manager. This is to ensure that all the information about the job scheduling execution across the entire scheduling environment is available inside the log file on that workstation. You can decide, however, to install the TEC logfile adapter on another workstation in your scheduling environment, depending on your environment and business needs, refer to Mapping your scheduling environment into the Tivoli environment for additional information.
Figure 19. Event Generation FlowThe logic that is used to generate job scheduling events is the following:
For some error conditions on event informing that the alarm condition is ended is also stored in the log file and passed to the TEC event server via the TEC logfile adapter. This kind of event is called a clearing event. It ends on the TEC event console any related problem events.
The following table describes the events and rules provided by the Tivoli Workload Scheduler Plus Module.
The text of the message that is assigned by the FMT file to the event is shown in bold. The text message is the one that is sent by the TEC logfile adapter to TEC event server and then to the TEC event console. The percent sign (%s) in the messages indicates a variable. The name of each variable follows the message between brackets.
| "TWS process %s has been reset on host %s" (program_name, host_name) | |
|
|
| "TWS process %s has been reset on host %s" (program_name, host_name) | |
|
|
| "TWS process %s is gone on host %s" (program_name, host_name) | |
|
|
| "TWS process %s has abended on host %s" (program_name, host_name) | |
|
|
| "Job %s.%s failed, no recovery specified" (schedule_name, job_name) | |
|
|
| "Job %s.%s failed, recovery job will be run then schedule %s will be stopped" (schedule_name, job_name, schedule_name) | |
|
|
| "Job %s.%s failed, this job will be rerun" (schedule_name, job_name) | |
|
|
| "Job %s.%s failed, this job will be rerun after the recovery job" (schedule_name, job_name) | |
|
|
| "Job %s.%s failed, continuing with schedule %s" (schedule_name, job_name, schedule_name) | |
|
|
| "Job %s.%s failed, running recovery job then continuing with schedule %s" (schedule_name, job_name, schedule_name) | |
|
|
| "Failure while rerunning failed job %s.%s" (schedule_name, job_name) | |
|
|
| "Failure while recovering job %s.%s" (schedule_name, job_name) | |
|
|
| "Multiple failures of Job %s#%s in 24 hour period" (schedule_name, job_name) | |
|
|
| "Job %s.%s did not start" (schedule_name, job_name) | |
|
|
| "Job %s.%s has started on CPU %s" (schedule_name, job_name, cpu_name) | |
|
|
| "Job %s.%s has successfully completed on CPU %s" (schedule_name, job_name, cpu_name) | |
|
|
| "Job %s.%s suspended on CPU %s" (schedule_name, job_name, cpu_name) | |
|
|
| "Job %s.%s is late on CPU %s" (scheduler_name, job_cpu) | |
|
|
| "Job %s.%s:until (continue) expired on CPU %s", schedule_name, job_name, job_cpu | |
|
|
| "Job %s.%s:until (cancel) expired on CPU %s", schedule_name, job_name, job_cpu | |
|
|
| (TWS Prompt Message) | |
|
|
| "Schedule %s suspended", (schedule_name) | |
|
|
| "Schedule %s is late", (schedule_name) | |
|
|
| "Schedule %s until(continue) expired", (schedule_name) | |
|
|
| "Schedule %s until (cancel) expired", (schedule_name) | |
|
|
| "Schedule %s has failed" (schedule_name) | |
|
|
| "Schedule %s is stuck" (schedule_name) | |
|
|
| "Schedule %s has started" (schedule_name) | |
|
|
| "Schedule %s has completed" (schedule_name) | |
|
|
| (Global Prompt Message) | |
|
|
| (Schedule Prompt's Message) | |
|
|
| (Job Recovery Prompt's Message) | |
|
|
| "Comm link from %s to %s unlinked for unknown reason" (hostname, to_cpu) | |
|
|
| "Comm link from %s to %s unlinked via unlink command" (hostname, to_cpu) | |
|
|
| "Comm link from %s to %s dropped due to error" (hostname, to_cpu) | |
|
|
| "Comm link from %s to %s established" (hostname, to_cpu) | |
|
|
| "Comm link from %s to %s down for unknown reason" (hostname, to_cpu) | |
|
|
| "Comm link from %s to %s down due to unlink" (hostname, to_cpu) | |
|
|
| "Comm link from %s to %s down due to error" (hostname, to_cpu) | |
|
|
| "Active manager % for domain %" (cpu_name, domain_name) | |
|
|
| Long duration for Job %s.%s on CPU %s. (schedule_name, job_name, job_cpu) | |
|
|
| Job %s.%s on CPU %s, could miss its deadline. (schedule_name, job_name, job_cpu) | |
|
|
| Job %s.%s on CPU %s, could miss its deadline. (schedule_name, job_name, job_cpu) | |
|
|
| Start delay of Job %s.%s on CPU %s. (schedule_name, job_name, job_cpu) | |
|
|
Default criteria that control the correlation of events and the automatic responses can be changed by editing the file maestro_plus.rls (in UNIX environments) or maestront_plus.rls (in Windows environments) file. These RLS files are created during Tivoli Workload Scheduler Plus Module installation and compiled with the BAROC file containing the event classes for the Tivoli Workload Scheduler events on the TEC event server when the Setup Event Server for TWS task is run. Before modifying either of these two files, make a backup copy of the original file and test the modified copy in your sample test environment.
For example, in the last event described in the table you can change the n value, the number of seconds the job has to be in ready state to trigger a new message, by modifying the rule job_ready_open set for the TWS_Job_Ready event class.
rule: job_ready_open : (
description: 'Start a timer rule for ready',
event: _event of_class 'TWS_Job_Ready'
where [
status: outside ['CLOSED'],
schedule_name: _schedule_name,
job_cpu: _job_cpu,
job_name: _job_name
],
reception_action: (
set_timer(_event,600,'ready event')
)
).
For example, by changing the value from 600 to 1200 in the set_timer predicates of the reception_action action, and then by recompiling and reloading the Rule Base you change from 600 to 1200 the number of seconds the job has to be in ready state to trigger a new message.
Refer to Tivoli Workload Scheduler Planning and Installation Guide for additional information about maestro_plus.rls and maestront_plus.rls files. Refer to Tivoli Enterprise Console(R) User's Guide and Tivoli Enterprise Console Rule Builder's Guide for details about rules commands.
Problem: Errors in the way the TEC logfile adapter matches job scheduling events.
IBM - Debugging Tivoli Enterprise Console 3.9 logfile adapter problems by Sandi Comsudi
