The second mode supported by the AMD64 and Intel 64 Technology is compatibility mode which is an intermediate mode of the full 64-bit mode described below. In order to run in compatibility mode, you will need to install a 64-bit operating system and 64-bit drivers. If a 64-bit OS and drivers are installed both Opteron and Xeon processors will be enabled to support a 64-bit operating system with both 32-bit applications or 64-bit applications.

Compatibility mode gives you the ability to run a 64-bit operating system while still being able to run unmodified 32-bit applications. Each 32-bit application will still be limited to a maximum of 4 GB of physical memory. However the 4 GB limit is now imposed on a per-process level, not at a system-wide level. This means that every 32-bit process on this system gets its very own 4 GB of physical memory space (assuming sufficient physical memory is installed). This is already a huge improvement compared to IA32 where the operating system kernel and the application had to share 4 GB of physical memory.

Additionally, compatibility mode does not support the virtual 8086 mode, so real-mode legacy applications are not supported. 16-bit protected mode applications are however supported.

Full 64-bit mode (Long Mode)

The final mode is the full 64-bit mode. AMD refer to this as long mode and Intel refer to it as IA-32e mode. This mode is when a 64-bit operating system and 64-bit application are use. In the full 64-bit operating mode, an application can have a virtual address space of up to 40-bits (which equates to 1 TB of addressable memory). The amount of physical memory will be determined by how many DIMM slots the server has and the maximum DIMM capacity supported and available at the time.

Applications that run in full 64-bit mode will get access to the full physical memory range (depending on the operating system) and will also get access to the new GPRs as well as to the expanded GPRs. However it is important to understand that this mode of operation requires not only a 64-bit operating system (and of course 64-bit drivers) but also requires a 64-bit application that has been recompiled to take full advantage of the various enhancements of the 64-bit addressing architecture.

For more information about the AMD64 architecture, see:

http://www.x86-64.org/

For more information about Intel 64 Technology, see:

http://www.intel.com/technology/64bitextensions/

The benefit of 64-bit (AMT64, Intel 64 Technology) computing

The Benefits of a 64-Bit Architecture

Companies that produced computer hardware and software often make a point of mentioning the size of their systems' address space (typically 32 or 64 bits). In the last five years, the shift from 32-bit to 64-bit microprocessors and operating systems has caused a great deal of hype to be generated by various marketing departments. The truth is that although in certain cases 64-bit architectures run significantly faster than 32-bit architectures. And that's not because they have faster CPU performce, but beacuse they can support larger RAM and larger datapath to external devices.

What does it mean to be 64-bit?

The number of "bits" refers to the width of a data path. However, what this actually means is subject to its context. For example, we might refer to a 16-bit data path (for example, UltraSCSI). This means that the interconnect can transfer 16 bits of information at a time. With all other things held constant, it would be twice as fast as an interconnect with a 8-bit data path.

The "bitness" of a memory system refers to how many wires are used to transfer a memory address. For example, if we had an 8-bit path to the memory address, and we wanted the 19th location in memory, we would turn on the appropriate wires (1, 2, and 5; we derive this from writing 19 in binary, which gives 00010011 -- everywhere there is a one, we turn on that wire). Note, however, that since we only have 8 bits worth of addressing, we are limited to 64 (2⁸) addresses in memory. 32-bit systems are, therefore, limited to 4,294,967,296 (2³²) locations in memory. Since memory is typically accessible in 1-byte blocks, this means that the system can't directly access more than 4 GB of memory. The shift to 64-bit operating systems and hardware means that the maximum amount of addressable memory is about 16 petabytes (16777216 GB), which is probably sufficient for the  forseeable future.

Unfortunately, it's often not quite this simple in practice. A 32-bit SPARC system is actually capable of having more than 4 GB of memory installed, but, usually no single process can use more than 4 GB.

Performance ramifications

The change from 32-bit to 64-bit architectures, then, expanded the size of main memory and the amount of memory a single process can have. An obvious question is, how did applications benefit from this? Here are some kinds of applications that benefitted from larger memory spaces:

• Applications that could not use the most time-efficient algorithm for a problem because that algorithm would use more than 4 GB of memory.

• Applications where caching large data sets is critically important, and therefore the more memory available to the process, the more can be cached.

• Applications where the system is short on memory due to overwhelming utilization (many small processes). Note that in SPARC systems, this was not a problem: each process could only see 4 GB, but the system could have much more installed.

In general, the biggest winners from 64-bit systems are corporate database engines. For the average desktop workstation, 32 bits is plenty.

In the same way that 16-bit processors and 16-bit applications are no longer used in this space, it is likely that at some point in the future, 64-bit processors and applications will fully replace their 32-bit counterparts.

Processors using the Intel 64 Technology and AMD64 architectures are making this transition very smooth by offering 32-bit and 64-bit modes. This means that the hardware support for 64-bit will be in place before you upgrade or replace your software applications with 64-bit versions. IBM System x already has many models available with the Intel 64 Technology-based Xeon and AMD64 Opteron processors.

The question you should be asking is whether the benefit of 64-bit processing is worth the effort of upgrading or replacing your 32-bit software applications. The answer is that it depends on the application. Here are examples of applications that will benefit from 64-bit computing:

Encryption applications

Most encryption algorithms are based on very large integers and would benefit greatly from the use of 64-bit GPRs and ALUs. While modern high-level languages allow you to specify integers above the 2³² limit, in a 32-bit system, this is achieved by using two 32-bit operands, thereby causing a significant overhead while moving those operands through the CPU pipelines. A 64-bit processor will allow you to perform 64-bit integer operation with one instruction.

Scientific applications

Scientific applications are another example of workloads that need 64-bit data operations. Floating-point operations do not benefit from the larger integer size because floating-point registers are already 80 or 128 bits wide even in 32-bit processors.

Software Applications requiring more than 4 GB of memory

The biggest advantage of 64-bit computing for commercial applications is the flat, potentially massive, address space.

32-bit enterprise applications such as databases are currently implementing Page Addressing Extensions (PAE) and Addressing Windows Extensions (AWE) addressing schemes to access memory above the 4 GB limit imposed by 32-bit address limited processors. With Intel 64 Technology and AMD64, these 32-bit addressing extension schemes support access to memory up to 128 GB in size.

One constraint with PAE and AWE, however, is that memory above 4 GB can only be used to store data. It cannot be used to store or execute code. So, these addressing schemes only make sense for applications such as databases, where large data caches are needed.

In contrast, a 64-bit virtual address space provides for direct access to up to 2 Exabytes (EB), and even though we call these processors 64-bit, none of the current 64-bit processors actually supports full 64 bits of physical memory addressing, simply because this is such an enormous amount of memory.

In addition, 32-bit applications might also get a performance boost from a 64-bit Intel 64 Technology or AMD64 system running a 64-bit operating system. When the processor runs in Compatibility mode, every process has its own 4 GB memory space, not the 2 GB or 3 GB memory space each gets on a 32-bit platform. This is already a huge improvement compared to IA32 where the OS and the application had to share those 4 GB of memory.

When the application is designed to take advantage of more memory, the availability of the additional 1 or 2 GB of physical memory can create a significant performance improvement. Not all applications take advantage of the global memory available. APIs in code need to be used to recognize the availability of more than 2 GB of memory.

Furthermore, some applications will not benefit at all from 64-bit computing and might even experience degraded performance. If an application does not require greater memory capacity or does not perform high-precision integer or floating-point operations, then 64-bit will not provide any improvement.

In fact, because 64-bit computing generally requires instructions and some data to be stored as 64-bit objects, these objects consume more physical memory than the same object in a 32-bit operating environment. The memory capacity inflation of 64-bit can only be offset by an application taking advantage of the capabilities of 64-bit (greater addressing or increased calculation performance for high-precision operations), but when an application does not make use of the 64-bit operating environment features, it often experiences the overhead without the benefit.

In this case, the overhead is increased memory consumption, leaving less physical memory for operating system buffers and caches. The resulting reduction in effective memory can decrease performance.

Software driver support in general is lacking for 64-bit operating systems compared to the 32-bit counterparts. General software drivers such as disk controllers or network adapters or application tools might not have 64-bit code in place for x64 operating systems. Prior to moving to an x64 environment it might be wise to ensure that all third-party vendors and software tools support drivers for the specific 64-bit operating system that you are planning to use.

4.3.2 Cache associativity

Cache associativity is necessary to reduce the lookup time to find any memory address stored in the cache. The purpose of the cache is to provide fast lookup for the CPU, because if the cache controller had to search the entire memory for each address, the lookup would be slow and performance would suffer.

To provide fast lookup, some compromises must be made with respect to how data can be stored in the cache. Obviously, the entire amount of memory would be unable to fit into the cache because the cache size is only a small fraction of the overall memory size (see 4.3.3, Cache size). The methodology of how the physical memory is mapped to the smaller cache is known as set associativity (or just associativity).

First, some definitions. Looking at Figure 4-11, main memory is divided up into pages. Cache is also divided up into pages and a memory pages is the same size as a cache page. Pages are divided up into lines or cache lines. Generally cache lines are 64 bytes wide.

For each page in memory or in cache, the first line is labeled cache line 1, the second line is labeled cache line 2, and so on. When data in memory is to be copied to cache, the line that this data is in is copied to the equivalent slot in cache.

Looking at Figure 4-11, when copying cache line 1 from memory page 0 to cache, it is stored in cache line 1 in the cache. This is the only slot it can be stored in cache. This is a one-way associative cache, because for any given cache line in memory, there is only one position in cache where it can be stored. This is also known as direct mapped, because the data can only go into one place in the cache.

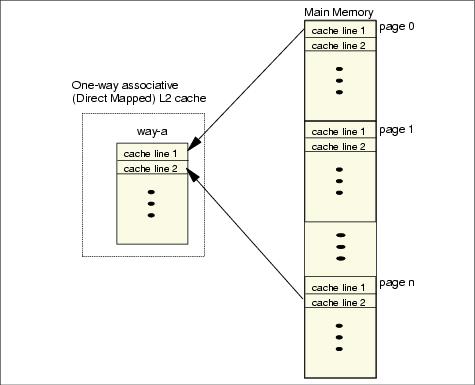

Figure 4-11 One-way associative (direct mapped) cache

With a one-way associative cache, if cache line 1 in another memory page needs to be copied to cache, it too can only be stored in cache line 1 in cache. You can see from this that you would get a greater cache hit rate if you use greater associativity.

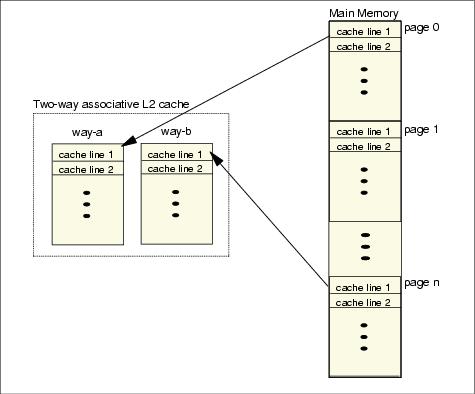

Figure 4-12 shows the 2-way set associative cache implementation. Here there are two locations in which to store the first cache line for any memory page. As the figure illustrates, main memory on the right hand side will be able to store up to two cache line 1 entries concurrently. Cache line 1 for page 0 of main memory could be located in way-a of the cache while cache line 1 for page n of main memory could be located in way-b of the cache simultaneously.

Figure 4-12 A 2-way set associative cache

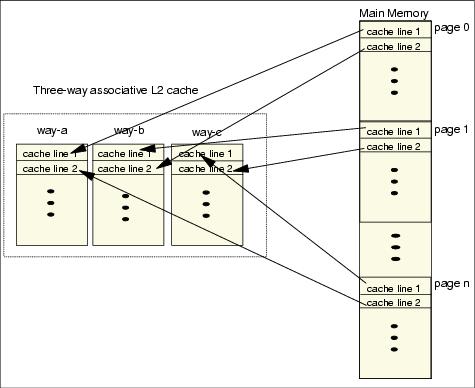

Expanding on a one-way and two-way set associative cache, a 3-way set associative cache (Figure 4-13) provides three location, a 4-way set associative cache provides four locations and an 8-way set associative cache provides eight possible locations in which to store the first cache line from up to eight different memory pages.

Figure 4-13 3-way set associative cache

Set associativity greatly minimizes the cache address decode logic necessary to locate a memory address in the cache. The cache controller simply uses the requested address to generate a pointer into the correct cache page. A hit occurs when the requested address matches the address stored in one of the fixed number of cache location associated with that address. If the particular address is not there, a cache miss occurs.

Notice that as the associativity increases, the lookup time to find an address within the cache could also increase because more pages of cache must be searched. To avoid longer cache lookup times as associativity increases, the lookups are performed in parallel, however, as the associativity increases, so does the complexity and cost of the cache controller.

For the high performance X3 Architecture systems such as the System x3950, lab measurements determined that the most optimal configuration for cache was 9-way set associativity, taking into account performance, complexity and cost.

A fully associative cache in which any memory cache line could be stored in any cache location could be implemented, but this is almost never done because of the expensive (in both cost and die areas) parallel lookup circuits required.

Large servers generally have random memory access patterns as opposed to sequential memory access patters. Higher associativity favors random memory workloads due to it's ability to cache more distributed locations of memory.

4.3.3 Cache size

Faster, larger caches usually result in improved processor performance for server workloads. Performance gains obtained from larger caches increase as the number of processors within the server increase. When a single CPU is installed in a four-socket SMP server, there is little competition for memory access. Consequently, when a CPU has a cache miss, memory can respond, and with the deep pipeline architecture of modern processors, the memory subsystem usually responds before the CPU stalls. This allows one processor to run fast almost independently of the cache hit rate.

On the other hand, if there are four processors installed in the same server, each queuing multiple requests for memory access, the time to access memory is greatly increased, increasing the potential for one or more CPUs to stall. In this case, a fast L2 hit saves a significant amount of time and greatly improves processor performance.

• As a rule, the greater the number of processors in a server, the more gain from a large L2 cache. In general:
• With two CPUs, expect 4% to 6% improvement when you double the cache size>
• With four CPUs, expect 8% to 10% improvement when you double the cache size
• With eight or more CPUs, you might expect as much as 10% to 15% performance gain when you double processor cache size

Of course, there are diminishing returns as the size of the cache improves; these are simply rules of thumb for the maximum expected performance gain.

4.3.4 CPU clock speed

Processor clock speed affects CPU performance because it is the speed at which the CPU executes instructions. Measured system performance improvements because of an increase in clock speed are usually not directly proportional to the clock speed increase. For example, when comparing a 3.0 GHz CPU to an older 1.6 GHz CPU, you should not expect to see 87% improvement. In most cases, performance improvement from a clock speed increase will be about 30% to 50% of the percentage increase in clock speed. So for the example above, you could expect about 26% to 44% system performance improvement when upgrading a 1.6 GHz CPU to a 3.0 GHz CPU.

4.3.5 Scaling versus the number of processor cores

In general, the performance gains shown in Figure 4-14 can be obtained by adding CPUs when the server application is capable of efficiently utilizing additional processors, and of course, there are no other bottlenecks occurring in the system.

Figure 4-14 Typical performance gains when adding processors

These scaling factors can be used to approximate the achievable performance gains that can be obtained when adding CPUs and memory to a scalable Intel IA-32 server.

For example, begin with a 1-way 3.0 GHz Xeon MP processor and add another Xeon MP processor. Server throughput performance will improve up to about 1.7 times. Increase the number of Xeon processors to four and server performance can improve to almost three times greater throughput than the single processor configuration.

At eight processors, the system has a bit over four times greater throughput than the single processor configuration and finally at 16 processors the performance increases to over six fold greater throughput than the single CPU configuration.

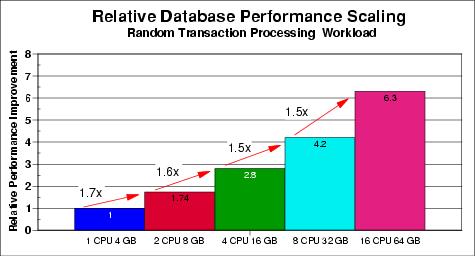

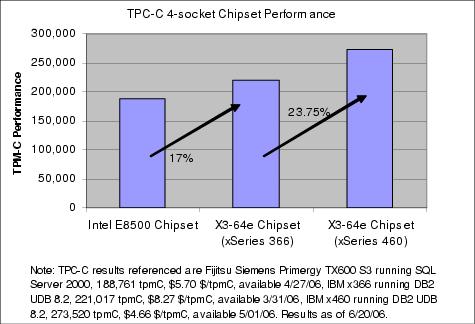

High performing chipsets such as the XA-64e generally are designed to provide higher scalability than the average chipset. Figure 4-15 shows the performance gain of a high performing chipset such as X3 Hurricane chipset in the x3850 as processors are added assuming no other bottlenecks occurring in the system. Performance gains of 1.9 and 1.8 are possible in certain business workloads.

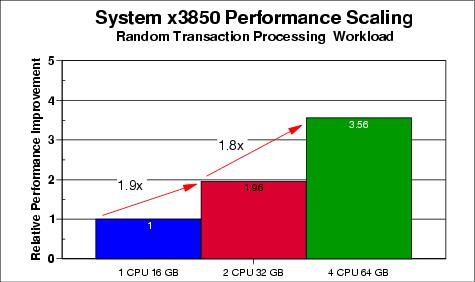

Figure 4-15 System x3850 Performance Scaling when adding processors

Database applications such as IBM DB2, Oracle, and Microsoft SQL Server usually provide the greatest performance improvement with increasing numbers of CPUs. These applications have been painstakingly optimized to take advantage of multiple CPUs. This effort has been driven by the database vendors' desire to post #1 transaction processing benchmark scores. High-profile industry-standard benchmarks do not exist for many applications, so the motivation to obtain optimal scalability has not been as great. As a result, most non-database applications have significantly lower scalability. In fact, many do not scale beyond two to four CPUs.

4.3.6 Processor features in BIOS

BIOS levels permit various settings for performance in certain IBM System x servers.

Processor Adjacent Sector Prefetch

When this setting is enabled, (enabled is the default for most systems), the processor retrieves both sectors of a cache line when it requires data that is not currently in its cache. When it is disabled, the processor will only fetch the sector of the cache line that includes the data requested. For instance, only one 64-byte line from the 128-byte sector will be prefetched with this setting disabled.

This setting can affect performance, depending on the application running on the server and memory bandwidth utilization. Typically, it affects certain benchmarks by a few percent, although in most real applications it will be negligible. This control is provided for benchmark users who want to fine-tune configurations and settings.

Processor Hardware Prefetcher

When this setting is enabled, (disabled is the default for most systems), the processors is able to prefetch extra cache lines for every memory request. Recent tests in the performance lab have shown that you will get the best performance for most commercial application types if you disable this feature. The performance gain can be as much as 20% depending on the application.

For high-performance computing (HPC) applications, we recommend you turn HW Prefetch enabled and for database workloads, we recommend you leave the HW Prefetch disabled.

Both prefetch settings do decrease the miss rate for the L2/L3 cache when they are enabled but they consume bandwidth on the front-side bus which can reach capacity under heavy load. By disabling both prefetch settings, multi-core setups achieve generally higher performance and scalability.

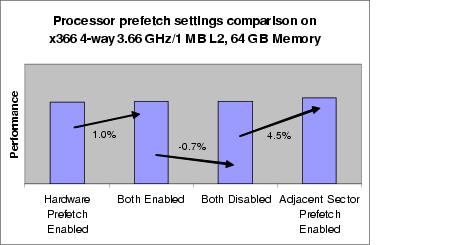

In single-core processor setups, it is generally more optimal to enable the adjacent sector prefetch. Figure 4-16 shows the gains that were measured with the various settings on a tuned single core x3850 server running an online transaction processing workload.

Figure 4-16 Prefetch settings on x3850 (System x366) with single core processors

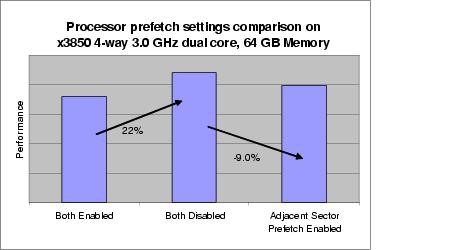

For dual-core processor configurations, it is generally more optimal to disable the prefetch settings. Figure 4-17 shows the gains that were measured with the various settings on a tuned dual core x3850 server running an online transaction processing workload.

Figure 4-17 Prefetch settings on x3850 with dual core processors

6.2 PCI-X PCI-X 2.0 is the latest version of PCI and is built upon the same architecture, protocols, signals, and connectors as traditional PCI. This architecture has resulted in maintaining hardware and software compatibility with the previous generations of PCI. This design means that devices and adapters that are compliant with PCI-X 1.0 are fully supported in PCI-X 2.0. When supporting previous PCI devices, it is important to note that the clock must scale to a frequency that is acceptable to the lowest speed device on the bus. This results in all devices on that bus being restricted to operating at that slower speed. PCI-X was developed to satisfy the increased requirements of today's I/O adapters, such as Gigabit Ethernet, Fibre Channel, and Ultra320 SCSI. PCI-X is fully compatible with standard PCI devices. It is an enhancement to the conventional PCI specification V2.2 and enables a data throughput of over 4 GBps at 533 MHz/64-bits in burst mode. Adapters with high I/O traffic, such as Fibre Channel and storage adapters, benefit significantly from PCI-X. These adapters provide a huge amount of data to the PCI bus and, therefore, need PCI-X to move the data to main memory. Tip: Simply migrating to a newer PCI bus might not alleviate the bottleneck in a system. Although the peak throughput has increased from PCI to PCI-X, this is not the only reason why PCI-X shows increased performance over PCI adapters. The following are changes made in PCI-X that provide higher efficiency and, therefore, a performance benefit when compared to standard PCI: Attribute phase The attribute phase takes one clock cycle and provides further information about the transaction. PCI-X sends new information with each transaction performed within the attribute phase which enables more efficient buffer management. The attribute phase can be split into several parts: Sequence information: Each transaction in a sequence identifies the total number of bytes remaining to be read or written. If a transaction is disconnected, the new transaction that continues the sequence includes an updated byte count. Furthermore, each transition includes the identity of the initiator (bus number, device number, and function number) an/tr> Relaxed order structure: Relaxed ordering is a technique that allows PCI-PCI bridges to rearrange the transactions on the bus. Therefore, more important data is transmitted before less important data, and the efficiency of the system improves. Transaction byte count: With this information, the PCI-PCI bridge gets information about how long a transaction will take. For every transaction, the byte count holds a count of how much data is remaining and, therefore, enables the PCI-PCI bridge to use its internal cache more efficiently. Split transactions Delayed transactions in conventional PCI are replaced by split transactions in PCI-X. All transactions except memory-write transactions are allowed to be executed as split transactions. If a target on the PCI bus cannot complete a transaction within the target initial latency limit, the target must complete the transaction as a split transaction. Thus, the target sends a split response message to the initiator telling it that the data will be delivered later on. This the frees the bus for other communications. When the data is available for transmission, the target requests access to the bus and completes the transaction with split completion transaction. For example, a SCSI controller that is waiting for data from a disk and is blocking the PCI bus for other devices is forced to complete the transaction as a split transaction. If the target meets the target initial latency limits, it optionally completes the transaction immediately (for example, the requested data was immediately available because it was found in the buffer of the SCSI adapter and it is immediately sent back to the initiator). The split transaction design replaces the similar, but less efficient delayed transactions used by older PCI specifications. The transactions are tagged and queued, and the specifications also allow for a relaxed ordering scheme that makes out-of-order execution possible. Allowable disconnect boundary When a burst transaction is initiated to prevent a single process from monopolizing the bus with a single large transfer (bursts can be up to 4096 bytes), PCI-X gives initiators and targets the chance to place interruptions. The interruptions are not placed randomly (which might compromise the efficiency of the buffers and cache operations) but are fixed on 128-byte boundaries - a figure big enough to facilitate complete cache line transmissions. The reliability of the PCI-X bus is improved by differentiating between peripheral and system errors. PCI-X has no possibility of recovering from system errors, but the device generating the error can be held in reset status, keeping the rest of the system up and running. The benefit of adopting the PCI-X standard is the increase in supported throughputs, evident with the 533 MHz implementation. When running at higher frequencies (133 MHz and higher), only one device can be on a PCI-X bus, making PCI-X a high-bandwidth point-to-point I/O channel. At lower speeds (less than 133 MHz), multiple devices can be connected on a single bus. Note that the 66 MHz implementation of PCI-X doubles the number of slots supported on a current PCI 2.2 66 MHz bus. Table 6-1 shows the possible combinations of PCI modes and speeds. Table 6-1 Mode PCI Voltage (V) 64-bit 32-bit 16-bit Max slots MBps Max slots MBps MBps PCI 33 5 or 3.3 4 266 4 133 Not applicable PCI 66 3.3 2 533 2 266 Not applicable PCI-X 66 3.3 4 533 4 266 Not applicable PCI-X 1331 3.3 2 800 2 400 Not applicable PCI-X 133 3.3 1 1066 1 533 Not applicable PCI-X 266 3.3 or 1.5 1 2133 1 1066 533 MBps PCI-X 533 3.3 or 1.5 1 4266 1 2133 1066 MBps 1Operating at 100 MHz PCI and PCI-X modes PCI-X devices use 3.3V I/O signalling when operating in PCI-X mode. They also support the 5V I/O signalling levels when operating in 33 MHz conventional mode, which results in cards either designed specifically for 3.3V PCI-X or universally keyed.     Figure 6-1 Adapter keying PCI-X cards are designed to run at either 66 MHz or 133 MHz. PCI-X cards are not designed usually to run at 100 MHz. However, the number of the loads on the bus can force a 133 MHz adapter to operate at 100 MHz.

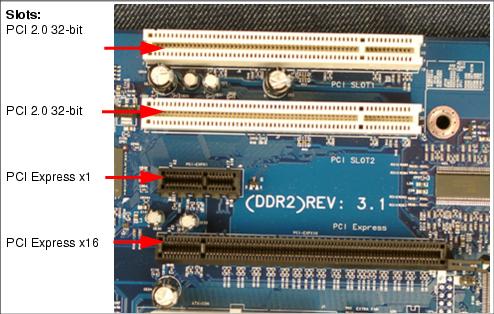

6.3 PCI Express PCI Express is the latest development in PCI to support adapters and devices. The technology is aimed at multiple market segments, meaning that it can be used to provide for connectivity for chip-to-chips, board-to-boards, and adapters. PCI Express uses a serial interface and allows for point-to-point interconnections between devices using directly wired interfaces between these connection points. This design differs from previous PCI bus architectures which used a shared, parallel bus architecture. A single PCI Express serial link is a dual-simplex connection that uses two pairs of wires - one for pair for transmit and one pair for receive - and that transmits only one bit per cycle. Although this design sounds limiting, it can transmit at the extremely high speed of 2.5 Gbps, which equates to a burst mode of 320 MBps on a single connection. This two pair of wires is called a lane. A PCI Express link is comprised of one or more lanes. In such configurations, the connection is labeled as x1, x2, x4, x12, x16, or x32, where the number is effectively the number of lanes. So, where PCI Express x1 would require four wires to connect, an x16 implementation would require 16 times that amount or 64 wires. This implementation results in physically different sized slots.   Tip: When you refer to lane nomenclature, you use the word by, as in by 8 for x8. Figure 6-2 shows the slots for a 32-bit PCI 2.0, PCI Express x1 and a PCI Express x16. From this figure, it is clear that the PCI Express x16 adapter will not fit physically in the PCI x1 slot.     Figure 6-2 PCI 2.0 and PCI Express edge connectors You can install PCI Express slots in larger slots but not in smaller ones. For example, you can install a PCI Express x8 adapter into an x16 slot (although it will still operate at the x8 speed), but you cannot insert an x8 adapter into an x4 slot. Table 6-2 shows this compatibility. Table 6-2

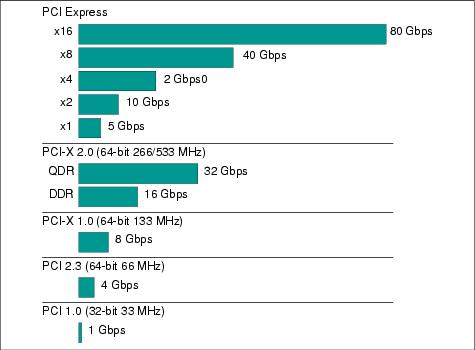

PCI Express performance PCI Express currently runs at 2.5 Gbps or 200 MBps per lane in each direction, providing a total bandwidth of 80 Gbps in a 32-lane configuration and up to 160 Gbps in a full duplex x32 configuration. Future frequency increases will scale up total bandwidth to the limits of copper (which is 12.5 Gbps per wire) and significantly beyond that through other media without impacting any layers above the physical layer in the protocol stack. Table 6-3 shows the throughput of PCI Express at different lane widths. Table 6-3 PCI Express maximum transfer rate   Lane width Clock speed Throughput (duplex, bits) Throughput (duplex, bytes) Initial expected uses x1 2.5 GHz 5 Gbps 400 MBps Slots, Gigabit Ethernet x2 5 GHz 10 Gbps 800 MBps None x4 10 GHz 20 Gbps 1.6 GBps Slots, 10 Gigabit Ethernet, SCSI, SAS x8 20 GHz 40 Gbps 3.2 GBps Slots, Infiniband adapters, Myrinet adapters x16 40 GHz 80 Gbps 6.4 GBps Graphics adapters   PCI Express uses an embedded clocking technique that uses 8b/10b encoding. The clock information is encoded directly into the data stream, rather than having the clock as a separate signal. The 8b/10b encoding essentially requires 10 bits per character or about 20% channel overhead. This encoding explains differences in the published specification speeds of 250 MBps (with the embedded clock overhead) and 200 MBps (data only, without the overhead). For ease of comparison, Table 6-3 shows throughput in both bps and Bps. When compared to the current version of a PCI-X 2.0 adapter running at 133 MHz QDR (quad data rate, effectively 533 MHz), the potential sustained throughput of PCI Express x16 is over double the throughput as shown in Figure 6-3.     Figure 6-3 PCI Express and PCI-X comparison (in Gbps)

7.3.5 Intel E8500 Chipset The Intel E8500 chipset, code named Twin Castle is used in many of our competitors' high-end systems. The E8500 is Intel's high-end chipset that was created for Intel EM64T MP-based, single-core Cranford and Potomac as well as dual-core Paxville and Tulsa processors. This chipset is a continuation or upgrade of the previous line of high-end Intel chipset and has the following features: Two front-side buses per node similar to the X3-64e instead of a single front side bus per node. The front-side bus has a bandwidth up to 800 MHz. Memory support for DDR-266, DDR-333, and DDR2-400. EM64T and support for single-core Cranford or Potomac and dual-core Paxville and Tulsa processors. PCI-E Support 3x8 and 1x4 lanes. The E8500 does not incorporate a snoop filter. Figure 7-6 shows the higher front-side bus utilization of a high-end chipset that does not incorporate a snoop filter such as the E8500. Processor commands sourced from one front-side bus generates traffic on the second front-side bus to ensure that those other processors do not have the requested data in their cache. This increase in traffic drives up the front-side bus utilization and slows down the overall performance of the system. Despite being released in March 2005, there have not been many performance benchmarks that demonstrate the performance of the E8500 "Twin Castle" chipset. The TPC-C benchmark is used generally to benchmark high-end servers by running an online-transaction processing workload. Figure 7-7 shows the performance difference between the only published four-socket Intel E8500 chipset verses four-socket X3-64e systems running the TPC-C benchmark. All three benchmark configurations used 3.0 GHz Paxville processors with 2x2 MB L2 caches and 64 GB of memory in the server.   Figure 7-7 Four-socket TPC-C chipset performance The results illustrate that the single node X3-64e chipset (xSeries 366) outperforms the Intel E8500 chipset by 17% for an online transaction processing workload despite the fact that the Intel E8500 chipset was running a 800 MHz front side bus compared to the 667 MHz front side bus of the X3-64e configuration. The X3-64e chipset was also configured with 4 CPUs configured as 2-nodes with two processors per node and a total of 128 GB memory which is represented by the xSeries 460 data point. The x460 result illustrates the scalability of multiple nodes by keeping the number of processors constant. For more information, see: http://www.intel.com/products/chipsets/e8500/
