Enterprise Job schedulers

(aka Workload Automation)

News Enterprise Unix System Administration Recommended Links Typical set of features Open Source Implementations Price-based classification Critique of Gartner Job Schedulers review
Open Source Job Scheduler GNU Batch Quartz  Oracle Scheduler OAR The Maui Job Scheduler Sun Grid Engine
Tivoli Workload Scheduler CA Unicenter Control-M from BMC Software OpsWise Automation Center UC4 Automation Engine Tidal Enterprise Scheduler
Cron and Crontab commands Unix System Monitoring Perl schedulers and support scripts Perl Admin Tools and Scripts   Humor Etc

Enterprise job scheduling (or as it now often called Workload automation  ) is the execution of a series of computer jobs/scripts with additional feedback about the results and ability to resubmit failed jobs, launch jobs in selected sequence depending of previous job ended, etc.

Enterprise job schedulers typically provide a graphical user interface and a central console for managing job streams and monitoring of  job execution, for example centralized viewing of remote job logs. The latter is just a hidden transferee of files from remote sever to the "mothership" but still valued greatly in enterprise environment. Increasingly job schedulers are required to be able to perform the event-based job invocation, for example launching job on appearance of disappearance of a particular file in a particular filesystem or change of characteristic of this filesystem (i.e. low free space).  The latter capability is actually is close to the requirements for modern enterprise schedulers. The term "workload automation" has several distinct meanings:

We will concentrate on Unix-based schedulers (which means that the server part of scheduler is on Unix/Linux; client can be on any platform)  and will touch the following topics:

For brief overview of Windows job scheduler market see  Microsoft report Job Scheduling on Windows

For large enterprises scheduler should work across different operating system platforms and application environments such as Oracle, SAP/R3, Websphere, etc. Enterprise class schedulers also should be capable of launching jobs on event(s) occurrence, not only based on calendaring functions. For example they should be capable to launch job on file creation, deletion, etc.

Architecturally they can be structured in two factions:

Enterprise job schedulers are rather expensive class of software.  According to IDC report (cited in CA Named Global Market Share Leader in Job Scheduling Software) the market for job scheduling software licenses in 2009 was $1.5 billion. Over the past 25 years, since the first multiplatform job schedulers appeared on the market, the market became pretty mature and solutions compete not so much on features but on price.

We can distinguish two different but overlapping types of scheduling:

One reason for development of various job schedulers is that Unix cron daemon and at command  have a pretty limited functionality.  They both generally follow the principle of  fire & forget.  The same is true for Window scheduler.  In the large enterprise environment the main weakness of these tools is lack of centralization as well as their limited ability to monitor jobs success/failures and to provide dependency-based scheduling. The latter is the situation, when the execution of next job in a job stream depends on the success or failure of one of several previous jobs.

Cron can be extended to satisfy richer scheduling requirements and that path is very attractive for small and medium enterprises which do not have resources to acquire and maintain complex scheduler. Also each additional piece of software increases overhead and waist resources. So if one can do it cleanly, it is better to enhance the use existing classic Unix tools. A simple jobstream status-based dependency mechanism is easy to implement in shell. In this case the start of each job can depend of existence of a global and unique for each jobstream "job stream status-file" that was created (or not, in case of failure) during some previous step. This is not a rocket science.

The classic PR why enterprise schedulers are indispensible is based on "backup job dependency example" when failure of a particular job needs to accounted in all subsequent steps (cleanup should be postponed, etc).  Using suggested above job stream based status file mechanism this functionality can be more or less easily implemented in both cron and using at command.

Remote scheduling is really important but with the universal adoption of SSH it can be done on remote computers as easily as on local. For example, if a backup job fails it did not create the success file, then  each job dependant on it should checks the existence of the file and exit if the file is not found. In more general way one can implement script "envelope" -- a special script that send messages at the beginning and at the end of each step to the monitoring system of your choice.  Using at commands allow you to cancel or move to a different time all at commands dependent on successful completion of the backup.

Still some centralization of job control across multiple servers is very beneficial. There should be some messaging (event) mechanism that create the console were you can see "the whole picture". Also a central console is badly needed to view and correlate the events that happened on various job streams if there are many of them. The possibility to cancel/reschedule jobs from central server is also very beneficial -- but it can be implemented via ssh.

Another typical complain about classic cron is that its calendaring function is not sophisticated enough to understand national holidays, furlough, closure,  maintenance periods, plants shut downs, etc. Avoiding running workload on holidays or specific days (e.g. an inventory day) is relatively easy to implement.  One way is to use the concept of "scheduling day" with particular start time and length (in some cases it is beneficial to limit length of scheduling day to just one shift or extend it to 48 hours period). This "start of scheduling day" script generates a sequence of at commands that need to be run during the particular day. So schedule is recreated each scheduling day from the central location.  That allows to centralize all calendaring checks at the "beginning of the scheduling day" script which can be run on the central location and propagate sequences of at command via ssh on all servers. After this one time "feed" servers become autonomous and execute the generated sequence of jobs, providing built-in redundancy mechanism based on independence of local cron/at daemons from each other: failure of the central server does not affect execution of jobs of satellite servers until the current scheduling day ends.

For backups is also important to spread the load across the time available (usually night shift). This requires complex dependencies and can benefit from the integration with network monitoring system.  Badly scheduled backup oven overflow to the beginning of the next day and create network bottlenecks.

Again, I would like to stress that for small companies a modest multi-server central scheduling functionality it is not difficult to achieve using classic Unix tools.

But for large organizations there are social issues which make this "homemade scheduler" scenario that is often successfully used in small startups. Social environment in large enterprises makes such approach much less plausible then if judges on its technical merits alone.

The key problem is that in large organizations traditionally scheduling of jobs is the domain of  so called "operations manager", the person who often has "mainframe" roots and who manages data center operators which provide 24x7 coverage working in three shifts. Often this staff, especially on night shifts, is not very technical and need crutches to modify scheduling or resolve some problem.  If we assume that you can hire five less technically savvy operators with just basic Windows skills and networking (on the level of A+ certification) and save $20K a year for each in salary,  $60K a year maintenance payment (which among other things provide 24x7 coverage from the vendor) for a complex "fool proof" enterprise scheduler leaves you with some money for the capitalization costs. Assuming five year amortization period to break even,  the initial license can cost as much as $200K (5*20*5-60*5=200).

Starting from 2008 growth of the open source tools provided the opportunity to implement a usable enterprise scheduler and monitoring system  using much less money and pay just for adaptation and maintenance without (or with minimal) initial capitalization costs.

While many operators have rudimentary Linux skills, learning enterprise flavors of Unix is generally anathema to a typical datacenter operator. At the same time typical datacenter represents a complex mixture of  networking equipment (often from several vendors such as Nortel and Cisco) and Windows and Unix servers. The latter often belong to several (from two to five) distinct Unix flavors. Full Unix stack that includes servers running Suse, Red Hat, AIX, HP-UX and Solaris is not that uncommon, especially for enterprises engaged in frequent acquisitions/divestitures.

This situation created a cottage industry serving to the need of those people using nice graphical interface and ad-hoc "scheduling constrains" languages.  While from pure technical standpoint 80% of functionality of this "super-duper" schedulers is just a waist of money and  "reinventing the wheel" in comparison with using regular scripting language, or extending database functionality for scheduling tasks (like was done in Oracle Scheduler).  But  as we demonstrated technical issues is only part of the picture. Convenience of some operations (viewing jobs reports, rescheduling failed jobs, nice messaging console, etc) also have value.

Generally enterprise schedulers are  just one example of the complexity of modern IT environment which has its own set of irrationalities not that different from the situation in Alice in Wonderland which remains the best guide into datacenter psychology ;-).

Typical set of features

It is difficult to enumerate the set of core features that scheduler should support. And this is actually not a very productive task. So let's leave it to Microsoft ;-).  Microsoft report Job Scheduling on Windows lists the following features as a core set:

As this site is developed for organizations who need to save money some compromise might be better that adopting an extreme position. I think that in enterprise scheduling area the right compromise is closely repeated to the adoption of open source scheduler like  Open Source Job Scheduler  and buying commercial support or finding some low cost commercial provider.

The field is crowded with a lot of old, overpriced junk with questionable functionality. Also snail oil selling is a pretty powerful factor in this business.

Standardization is absent: each scheduling manager implementation reinvents the wheel in their own idiosyncratic manner and they unusually error of the side of overcomplexity as they try to differentiate themselves from the competitors. For example, in addition to "pure" scheduling most provide centralized ftp/sftp distribution of jobs, some configuration management capabilities and intrude into monitoring space by providing some kind of  "job monitoring console".  It's really sad that most job scheduling developers even don't suspect about existence of modern and pretty powerful monitoring systems...

As with any additional software product you introduce in enterprise environment, there is no free lunch. You need to use central server (a several servers) for job scheduling and instantly you need a failover capabilities (cron is actually distributed solution by its nature,  so failure of one server does not affect scheduling on  other server).

The positive side of enterprise schedulers is that by integrating job processing on central console and using central server one can achieve much higher level of workload automation then with locally edited cron jobs.  Moreover a lot of computer maintenance tasks can be reformulated in terms of job and job streams (collection of jobs performing particular task).

Sophisticated visual presentation of job streams and summarizing the results of jobs runs in a intuitive manner also can save time and increase productivity. For several hundred jobs it is difficult to parse output without automatic tools.  Operators can't read through individual logs fast enough, and this is generally a boring, error prone procedure.  Automation of rerunning of failed jobs is very important for large job stream (say over 500 jobs a day).

Usually specialized job scheduling systems provide some additional useful functionality beyond scheduling. For example, more advanced job schedulers contain change management and record keeping/report generation  capabilities. As a set of several hundred jobs is usually a mess, change management is very important. Along with centralized repository, change management permit tracking changes: whenever a change is made, a record related to this change is created.

It typically includes the description of the change and the name of the person who made and/or approved it.  Of course it can be implemented via Subversion and similar tools.

Another standard feature of enterprise job scheduling is that it handles computer jobs off across multiple servers/workstation  which can be in different time zones. You can also chain jobs so that the next job in the chain starts immediately or after short delay after the previous job finished successfully (in case of failure other job or no job can be launched or the whole job stream can be aborted).  Chaining is historically one of the oldest feature of job scheduling and was present in JCL of System/360 -- a dinosaur of scripting languages.

Open Source Implementations

Among open source implementations, the following are the leaders of the pack:

Major proprietary players

Major proprietary players (that does not mean that any of them is superior to modern implementations; actually the opposite is true to not too diverse client configuration, say, 4 flavors of Unix and Windows)  include (see Gartner Magic Quadrant for Job Scheduling  if you think that Gartner is not fully out of touch with the reality ;-):

Price-based classification

Commercial Job Schedulers also can be classified by price ( adapted from Job Scheduling Tools):

< $10,000

$10,000 to $25,000

Critique of Gartner Job Schedulers review

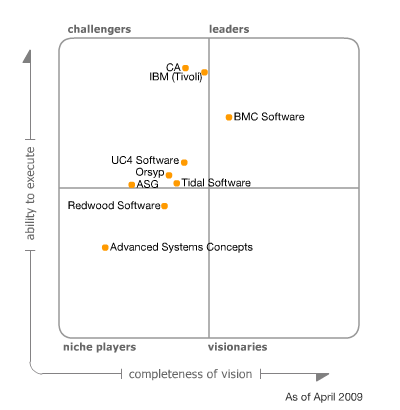

In 2009 Gartner Magic Quadrant for Job Scheduling Report paper Gartner provides some rating of existing job schedulers which, of course, should be taken with a grain of salt.  Actually the lower the scheduler is grader in Gartner report the more promising it looks for large enterprise deployment if for no other reason as more modern architecture and lower cost ;-).  Here is their rating chart called  Magic Quadrant. And it really has some magical, difficult to be rationally explained  positioning of schedulers vendors:

Like in most Gartner reports they use pseudo-scientific terminology (like "ITWAB vision")  and research report structure which  actually hides the features of the products not reveal real strengths and weaknesses of products present on the market.

It looks like the axis Y ("Ability to Execute") of this quadrant is strongly correlated with the market share/installed user base.  CA, Tivoli and BMC are three market leaders with CA having the biggest market share of all three.

Axis X ("completeness of vision") does not look meaningful. Gartner defines it as

On the Completeness of Vision (horizontal) axis, we evaluate how well a vendor or product will do in the future relative to Gartner's scenario for where a market is headed, which is based on our understanding of emerging technologies and the requirements of leading-edge clients. It also evaluates vendors on their ability to convincingly articulate logical statements about current and future market directions, innovations, customer needs and competitive forces, and how well they map to the Gartner position.

I doubt that the positioning presented reflects future prospects of the products.  All three major vendor are pretty vulnerable in my opinion as the current economic environment puts tremendous stress on the price and "big three" are still charging "mainframe" prices for the product (BMC  Control-M actually started as mainframe product).

At the same time Axis X in my oopinion is somewhat correlated with the availability of monitoring solutions from the same vendor (and related integration of event streams).  That may be accidental.  Still BMC is a definite leader in the integration of its monitoring solution with job scheduling.  IBM also is also good in this area if we assume integration with TEC.

Their criteria for leaders looks pretty unconvincing:

Vendors positioned in the Leaders quadrant have a large, satisfied installed base and a high degree of visibility in the market (for example, frequent consideration and success in competitive situations). They offer robust, highly scalable applications, and have the strategic vision to address evolving enterprise requirements in the areas of:
  1. ITWAB
  2. Integration with packaged applications
  3. Support of new application and composite application architectures
  4. Integration with BSM tools, provisioning and RBA tools
  5. Ability to handle physical and virtual environments
  6. Integration with service desk tools
  7. Proven critical path analysis capability
  8. Forecasting capability
  9. Workload life cycle management capability
  10. Support agent-based and agentless architectures
  11. Ability to perform end-to-end automation, preferably with a single product

with more reasonable (althouth far from perfect) set of requirements recommended in Tidal evaluation guide (Job Scheduling Evaluation Guide):

This detailed evaluation guide provides a framework for benchmarking features and functions of enterprise job schedulers including:

  1. Calendaring
  2. Dependencies, Queues and Prioritization
  3. Alert Management
  4. Application and Database Support
  5. Framework / Network Management Integration
  6. Security and Audit Trails
  7. Fault Tolerance and Auto Recovery
  8. Event Driven Processing
  9. Scalability

It is clear that  in Gartner list No.1 is a bogus criteria. No.2 in fuzzy (does availability of open API qualified you for "integration with packaged applications" or you need explicit "bridges"). No.3 is also by-and-large bogus and reflect Gartner unhealthy infatuation with new and meaningless terms  and technologies. For example, support of Web services or "cloud computing" ( what ever this means) does not automatically make a particular scheduler better.

No.4 is again fuzzy and so on as there as devil here in details (this is especially true for provisioning: a support of ftp dowloads is actually rpovisioning support, if you thing about it).  Events/alerts management, the key architectural issue for schedulers is not even a separate category in Gartner's criteria for leaders.

For example they characterize IBM TWS product in the following way:

Strengths

Cautions

You can compare this assessment with the assessment I made in  Tivoli Workload Scheduler page.  You can see that while detecting some elements of reality ("not widely adopted in Microsoft environments"). But Gartner definitely tries to be politically correct and not offend any large company. Actually it completely ignores the fundamental weakness of TWL connected with the outdated architectural aspects of the product. Among them is outdated command line interface; very weak GUI interface, integration with TEC using named pipes (Tivoli TEC will be dead in 2012).  weak integration with other products in Tivoli line (TWS was an acquisition not in-house development for Tivoli). It concentrated on some superficial notions.  In reality TWS is expensive and pretty user unfriendly product burdened by legacy issues. Maintenance costs are high. A reasonable estimate would be ~$300K in one year maintenance costs for medium size deployment with less then 500 endpoints:  IBM actually counts cores so simplifying their arcade value unit structure  one can assume that a typical 8 core server Intel-server (two quad CPUs) counts as 8 licensing units (with some minor discount for SPARC and Intel CPUs).  Just of the base of the price TWS future looks bleak despite the installed base as sooner or later companies realize that they can pay one third of less of the price for all functionality they need.  Moreover the initial cost of TWS is just the tip of the iceberg and should probably be doubled as you need licensing of at least Tivoli Advanced Monitoring 6.x and, preferably, TCM (for delivery of TWS instances to endpoint) to make it work in large corporate environment.   In no way it can be classified as challenger  (unless in very specific sense because it is really a challenge to install and maintain) -- this is a real dinosaur of scheduling applications and the only thing IBM can try with TWS is to defend its turf (sometimes using tricks like automatic extension of the contract). My impression is that defections to less costly/more modern products were pretty common in 2008-2009 even among large enterprises.

Sometime language abuse in the report looks really funny:

" The workload automation vision is part of the overall dynamic infrastructure vision, in which it becomes the enabler for delivering execution services complying to specific high-level characteristics, such as the type of workload to support, the response time needed and the energy consumption to attain."

In reality this is an obscure way to say "I do not know the subject in-depth , but I want to make an impression that I am a respectable, knowledgeable analyst" ;-).  There is something a little bit Orwellian about the obscurity of the phase above and it reminds me Soviet Politburo reports or for those who never read such, Greenspan's Fed statements.

Dr. Nikolai Bezroukov

Notes:
  • This is a Spartan WHYFF (We Help You For Free) site written by people for whom English is not a native language. Some amount of grammar and spelling errors should be expected.
  • The site contain some broken links as it develops like a living tree... Please try to use Google, Open directory, etc. to find a replacement link (see HOWTO search the WEB for details). We would appreciate if you can mail us a correct link.
Google Search
Open directory
Research Index

Old News ;-)

[Nov 18, 2009] Workload Automation Differentiators Opswise Software

Some of their points, especially critique of legacy vendors makes sense. They provide a Free Trial
We hope that you will find every facet of our company different than our competition. We think we can realize this vision through our values, beliefs, and solutions. Sure, we are 100% web-based, the only true enterprise-wide solution available, and stunningly easy to use are all significant differentiators, but to better understand how we got here, and more importantly how we will continue to lead the evolution, please read on:

Attitude - while the company is comprised of Automation Experts, we believe that the answers to great software lies in the challenges our customers face on a day-to-day basis. We listen and ask questions of our customers to better understand their problems and their vision for their data center. We love to learn about challenges and help implement simple and innovative solutions.

Integrity - we are up-front when we don't understand a question and admit when our solution does not have all the necessary functionality to solve every problem. We do believe that we can show you the fastest, least expensive, and best route to success, all we ask is for a chance to prove it. Just ask for a demo and you will see the difference.

Technology - while we are quite confident that we have by far the best technology platform in our market segment, Yet, we are also acutely aware that we do not have all the functionality of products that have been around 30 years. We share our roadmap with our customers and let them prioritize what is in the next release and we do releases quarterly based on this input. No waiting 2 years for a feature that will make your life easier. Since our first release in 2008 we have added significant new features while maintaining compatibility with the older release, making upgrades as painless as possible.

Licensing - we are not going to try and force you to be "all in up front". You buy and use the software the way you want. Modern - no client/server heritage with a web front-end here. No API set with a SOAP veneer. We are native web from start to finish and of course industry compliant (AJAX, SOAP, WSDL, RSS, LDAP), but more importantly, your users will notice that the technology works - whether it is auto-complete in the browser (AJAX), integrations with other infrastructure (SOAP, JMS, JDBC, SMS, ...) or single signon in complex environments (LDAP). We firmly that you will find OpsWise Automation Center to be the most powerful, flexible, and the simplest solution available today.

Work Smarter, Not Harder

In times of change, savvy IT executives scrutinize the status quo and identify opportunities to cut costs while improving the IT organization for the long-term.

Hard dollar savings from day one

OpsWise Automation Center is intended to save you money on day one. First, our pricing is lower and more flexible than the major vendors and will typically cost half of your current maintenance fees. Second, implementation will take a fraction of the time. Third we will all but eliminate all future upgrade costs. Fourth, we are much, much easier to use and you will get more out of our solution than the competitors.

Productivity now more than ever

Legacy vendors continue to acquire companies for market share attempting to appease Wall Street. These acquisitions are rarely in the best interest of the customer. Broken integrations and multiple User Interfaces hurt customer productivity. IT organizations can’t afford tools that hinder more than help. Give us a hard problem that will help you run your business better and we will help you automate it.

Implement in less time than our competitors upgrades

Our customers don’t waste time installing complex software because our solution is built with standards and Web 2.0, from day one. Implementation begins typically in less than a half a day, not after weeks or months of struggling with traditional installation headaches.

Flexibility is a key business differentiator

Current economic conditions will force business and IT services to be agile. The simplicity and flexibility of Web 2.0 technology allows our customers to easily customize the user interface to meet unique business needs.

Speed of Deployment

Start your Engines
Our customers get configured and running in hours - not days and weeks. This enables you to spend your time evaluating the product and building workflows as opposed to on hold with technical support with someone who may or may not be able to fix your problem.

Upgrades should be painless

Enterprise software vendors have historically required customers to shoulder the burden and costs of upgrades and maintenance. These same vendors are forcing significant, expensive and time-consuming upgrades during lean economic times. Most IT organizations today can’t absorb the loss of valuable time and resources, additional infrastructure expenditures, excessive consulting costs and staff retraining. Not to mention, the endless cycle of patches and maintenance. Opswise makes our upgrade process seamless; adding new features and improved usability – not a long drawn out process – with new fees attached.

Modern Architecture

Web 2.0 based Technology is More Intuitive
Automation Center is a pure internet based solution; all you need is a web browser and an internet connection. There's no client software to maintain and install, ever!

It's been designed from the ground up to be an internet application with the look, feel, and behavior of any other web application. Inspired by Yahoo!, Google and Amazon.com we want to provide software that empowers users with software that “just works”!

Extensive use of advanced web technologies such as AJAX means that we can offer the kind of real time interactivity that has traditionally required a fat GUI client, and we can do it all from inside of your web browser. Want to see details of a record? Try mousing over it and watch the system pull the information back as a tooltip. Need to choose a task? Try typing a few letters and watch the system start auto completing possible matches.

OpsWise believes that the future lies in open systems communicating over standard protocols such as SOAP and web services. We've designed our product from beginning with open standards in mind, supporting everything from bulk data feeds to real-time interactive SOAP operations, both into, and out of our system.

Usable

There is a radical shift occurring in IT that has been made possible by wide spread adoption of the web. Examples are all around us and have become so common that it is easy to miss how reliant we have become on the web for day-to-day activities. We often do not give the web and its underlying complexity credit for how it simplifies complex tasks.

Empowering

IT is now a key provider of competitive advantage particularly in industries like financial services, energy, retail, pharmaceuticals and government. Managing the web of services that support the business is critical for successful service management. The more information that organizations can give to IT the better IT will be. For today’s customers, the line between back office and front office is quickly blurring. Our customers are using Automation Center to schedule traditional back office business processes, but also to manage front office revenue producing activities. One tool for both activities greatly reduces the learning curve and greatly increases their flexibility to move faster in this rapidly changing world. Plus, it saves them money by using one tool for both activities.

Frequent Software Updates

With OpsWise, you don't have to wait years to get upgrades. We upgrade our software quarterly, with input directly from the customer base. Participate interactively with us to build a product roadmap that gets you and your fellow customers to that next level in Workload Automation.

Our easy upgrade process eliminates the risk of upgrade.

Security & Auditing Inherent in Design

Opswise Automation Center is drastically different than legacy products. We combine our years of IT experience with world-class technology to ensure you are protected. We deliver confidence in three key areas:

Communications Security

Our comprehensive defense and response systems include firewall protection, VPN tunneling, multiple layers of encryption (SSL/TLS), and LDAP security. We provide secure integrations to prominent 3rd party systems and data sources.

Application Security

We deliver acute application security functions focused on user authentication, access control and auditing. Automation Center is governed by encrypted password protection, role-based security and contextual security. Each interaction is logged for auditing purposes.

Audit & Compliance

We deploy governance strategies designed to ensure customer privacy, meet auditing standards including SAS-70 Type II, and help support regulation initiatives.

10 Ways OpsWise is Better

Fast Installation

Get up and running in hours, not days. Drop in the agents and they auto-register with the server.

Ease of Use

Point-and-Click, drag-and-drop. It's that simple to use Automation Center. Ease of Use is a huge focus for every feature we design in OpsWise. From easy to navigate menus, to auto-fill forms; you can get up to speed and using the product within hours, not days. The money you'll save in not having to send employees for training courses will pay for the software.

100% Web-Based

Every single user and administrative task can be accessed via the web browser. No applets to download. 100% HTML and JavaScript. Access it from ALL popular web browsers and mobile devices.

Create IT Workflows

With the integrated diagramming tool, you can build Dynamic workflows and see them run in real-time. Use logic to take different paths in workflows based on task status.

Integrated Reporting Tool

Dozens of report templates to choose from or build your own. Graphical report writer enables you to build text reports, pie charts, and bar charts. Schedule reports to be distributed, and build interactive dashboard widgets to drop on your customizable home page.

Security from end-to-end

Using SSL from the browser all the way to the agent, you can secure your communication end-to-end. Firewall traversal is made easy with our architecture.

Comprehensive Auditing

A huge step forward in improving your IT compliance initiatives! Every single user command action is audited - including before and after changes. Easy to archive audit data. Use our integrated reporting tool to build Audit reports quickly!

Bring it to your next platform

100% Cross-platform. The same code runs on Linux, Windows, UNIX, or z/OS. To migrate from one platform to another isn't a conversion. Transfer your data to a new database and start up on another server. It's that simple.

Hassle-free licensing

We don't charge for platform switches, we don't charge for test and development licenses. We also provide workload-based pricing where you can deploy an unlimited amount of our software, and only pay for what you use.

Switching? Guaranteed savings

Looking to switch from your legacy scheduler? Not only will you achieve all of the advantages listed and more, but we guarantee that we can drop your maintenance bill by 50%.

Cron: The Good, The Bad & The Ugly

November 8, 2009 | OpsWise

A number of inquiries we get relating to OpsWise Automation Center, is from organizations who are growing, and as a result, it's simply time to replace cron.

For decades, administrators of UNIX and UNIX-like systems such as Linux have relied on cron, the built-in systems scheduler, in order to schedule and automate tasks. In this post, we will explore cron's strengths and weaknesses as well look at the challenges that this approach as opposed to an enterprise automation approach, such as OpsWise!

CRON the Good

There's a lot of good about cron, for instance:

CRON the Bad

CRON the Ugly

OpsWise as a CRON replacement

OpsWise addresses the Bad and the Ugly of cron, providing you with:

Looking at new scheduling solutions (BMC, Title or UC4) (1st Response) - Toolbox for IT Groups

Its better to have third party scheduler as it gives greater control and options for running jobs. Informatica scheduler is good to some extent, but not flexible to adhoc needs. Following are few tools available in the market which you can explore...

1. Autosys - Recommended
2. Tivoli Workload Scheduler(IBM) - Recommended
3. Tidal
4. Control-M - Recommended(BMC)
5. Approwx
6. UC4 - Recommended
7. Crontab - Unix Native utility
8. Cronacle
9. Dollar Universe
10. Automan
11. Flux
12. Load Leveler(IBM)
13. Task Forest
14. PTC Scheduler
15. Quartz
16. SAP Central Process Scheduling
17. Xgrid (Apple)
18. Visual Tom
19. Indesca
20. TLOS Scheduler
21. Macro Scheduler
22. Bicsuite
23. Automation Center
24. Automation Anywhere
25. Batchman
/Rajiv

Maui Cluster Scheduler

Maui is an advanced job scheduler for use on clusters and supercomputers. It is a highly optimized and configurable tool capable of supporting a large array of scheduling policies, dynamic priorities, extensive reservations, and fairshare. It is currently in use at hundreds of leading government, academic, and commercial sites throughout the world. It improves the manageability and efficiency of machines ranging from clusters of a few processors to multi-teraflop supercomputers.

Maui is a community project* and may be downloaded, modified, and distributed.  It has been made possible by the support of Cluster Resources, Inc and the contributions of many individuals and sites including the U.S. Department of Energy, PNNL, the Center for High Performance Computing at the University of Utah (CHPC), Ohio Supercomputing Center (OSC), University of Southern California (USC), SDSC, MHPCC, BYU, NCSA, and many others.

Features:

Maui extends the capabilities of base resource management systems by adding the following features:   Maui interfaces with numerous resource management systems supporting any of the following scheduling API's

PBS Scheduling API - TORQUE, OpenPBS and PBSPro
Loadleveler Scheduling API - Loadleveler (IBM)
SGE Scheduling API - Sun Grid Engine (Sun)*
BProc Scheduling API - BProc (Scyld)**
SSS XML Scheduling API*
LSF Scheduling API - LSF (Platform)
Wiki FlatText Scheduling API (Wiki)
*partial support or under development
**supported under Clubmask

Maui is currently supported on all known variants of Linux, AIX, OSF/Tru-64, Solaris, HP-UX, IRIX, FreeBSD, and other UNIX platforms.

The Maui scheduler is mature, fully documented, and supported.  It continues to be agressively developed and possesses a very active and growing user community.  Its legacy of pushing the scheduling envelope continues as we promise to deliver the best possible scheduler supporting systems software will allow.

[Jul 24, 2009] Saturn network job scheduler freshmeat.net

Some alpha-level Perl-based implementation.
Saturn is a job scheduler for networks that makes it to control local and remote job scheduling through simple commands similar to crontab, or through a graphical interface.

PowerPoint presentation Job Scheduler Development Roadmap

Do we really need end-to-end automation- by Wolfgang Tonninger

From UC4 development team blog
Beyond Job Scheduling

In our daily working lives we have numerous such business processes running constantly across our enterprise. Some of these processes are highly manual – requiring phone calls between individuals, emails, file transfers, data transferred using memory sticks etc – others are partly automated using for example some form of time and date based batch-processing tools. But in summary, they do everything but smoothly connect people, departments, applications and servers – creating islands of automation, which you may attack with specific tools in order to help manage them, and a series of manual stages.

The danger of operating in this way in today’s challenging and highly competitive business environment is that the manual processes which inevitably require human intervention carry the risk of being error prone as well as costly on resources. Having some islands of automation that are disconnected from each other also decreases our business efficiency.

Document Downloads at cosbatch.com

Several PDF documents with information about the system.

Job Scheduling Evaluation Guide

Overview :

IT groups must support many applications and servers across multiple platforms that frequently operate independently of each other. However, coordinating job scheduling across all these applications and networks is often required to optimize resource utilization. The traditional approach of applying more staff, toolkits, and rudimentary scheduling software to cobble together automated batch processing solutions becomes cost-prohibitive, inefficient, and error-prone, as the number of moving parts increases and the environment becomes more heterogeneous.

Enterprise job scheduling products enable datacenters to solve this problem by simplifying both complex and routine tasks. This detailed evaluation guide provides a framework for benchmarking features and functions of enterprise job schedulers including:

Read this evaluation guide to learn how to compare competing products and determine which is appropriate for your needs.

Open Source Job Schedulers in Java

Vinzant Software - Global ECS

Global ECS allows you to graphically schedule, automate and control complex job streams for multiple platforms in a heterogeneous distributed production environment. It delivers absolute power and control while utilizing simple to use and well-designed graphical management tools. Global ECS allows you to easily define complex jobs and batches that may require a large number of conditional parameters such as job, file and/or resource dependencies. It also supports multiple calendars, alerting and user definable recovery actions. By utilizing Global ECS technology, you will realize single point administration and real-time monitoring that will allow you to gain control of your enterprise-wide scheduling environment.

Key Features:

Benefits

Global ECS is used by some of the most demanding data centers in the world. Our solutions have been used since 1987 to automate, integrate and accelerate business application processing. GECS can be deployed quickly ensuring a very fast return on investment. It has been proven over and over again to lower the total cost of operations.

Key Benefits:

Open source workflow job scheduling for SuperScheduler

Posted by: Wei Jiang on October 30, 2008 DIGG Workflow job scheduling is available for SuperScheduler and SuperWatchdog at http://www.acelet.com/super/SuperScheduler/index.html.

SuperScheduler is a full-featured task scheduler for all system and application job scheduling. Super Scheduler is the twin software of Super Watchdog, which is event-action task scheduler for event monitoring. Super Scheduler is entirely written in Java. It is an open source project with GPL license.

Introduction to Enterprise Job Scheduling The Service Level Management Learning Community by Elizabeth Ferrarini

www.nextslm.org A Crash Course in Cutting IT Ops Costs

Since 2001 in every industry, IT has come under intense pressure to make organizations perform more efficiently while still contributing to the bottom line. Nowhere is this more apparent in financial services where batch job scheduling has become the critical component to IT success.

The U.S. Securities and Exchange Commission has asked that all stock trades be cleared on what's called the trade day plus one or T+1 by June 2005. This requirement will force a switch from Wall Street's traditional batch processing systems to a real-time processing network that never crashes, according to a Computerworld article. The article adds that while upgrading to comply with T+1 will cost about $8 billion, the financial services industry will see savings of about $2.7 billion a year. In addition, this industry will have lower costs, lower error rates, and higher productivity while graining the ability to handle greater transaction volume.

Based on the ROI figures for the financial services industry, it comes clear that there are significant monetary benefits to be gained from implementing an automated job scheduling solution. It also becomes clear that beyond the direct addition to the bottom line through cost savings there are benefits of freeing up systems resources allowing them to be used more productively (e.g. talented human resources can be put to better use on more important IT projects).

Taken together, automating job scheduling on the surface can offer significant benefits to enterprises of every size. Since not all job schedulers are created equal and don't yield the same benefits, you need to understand how the different types of schedulers work and what attributes to look for in an automated job scheduler. This article will provide you with a crash course on the subject.

How Job Schedulers Work

Job scheduling comprises one of the most important components in a production-computing environment. Job schedulers do many things. They initiate and help manage long, complex jobs, such as payroll runs and inventory reports. They also launch and monitor applications.

Most computer environments use some kind of job scheduler. With the large distributed computing environments, some job schedulers have not scaled to meet the challenges of enterprise computing. Mainframe schedulers enjoy a reputation for power and robustness, but can be limited to working on mainframes. Unix schedulers, on the other hand, have a reputation for being severely limited in functions, but have cross-platform abilities which mainframe schedulers lack.

When beginning to manage batch workloads in open systems environments, most companies launch their first jobs using manual methods. This technique is understandable and appropriate. However, this technique quickly breaks down when the number of machines and batch jobs increases

For example, Unix and NT systems provide job launchers. These native tools allow users to launch jobs at specific times and specific dates. These commands provide a basis for scheduling, yet on their own do not deliver a solution for complex scheduling requirements. They rely on operators manually submitting jobs from a workstation. This technique is costly, and potentially unreliable and error prone.

In distributed systems, the job launchers in Unix and NT systems provide simple job launching capability. They offer the ability to start a batch job at a specific time, based upon an adequate set of time and date matching criteria. They perform simple job scheduling tasks such as kicking off a backup every Saturday.

The biggest weakness of these native tools is their inability to monitor and to correlate the execution of one job with the results of another. If a backup job fails, these tools don't know it should suspend the jobs that update the tape catalogs or deletes yesterday's old files. If the backup finishes early, these tools can't move up jobs that are to be executed upon completion of the backup.

Also, these native tools can only start jobs that are time-dependent. This procedure makes it difficult to create a job that runs when a file disappears or when a system resource has a certain threshold.

Job launching of configuration files are difficult to maintain. Even minor changes to a job's start time are time consuming and error prone. And there are no layered tools to make job creation easier. Remember, these tools are simple job launching tools designed for low volume environments. They lack all critical features required for complex, large systems.

To make up for this deficiency, many systems administrators create their own job management system. They use these native tools to initiate a job controller and create scripts that detect failure conditions, initiate other jobs, and provide some degree of checkpoint and restart capabilities.

While these solutions often work adequately for small job streams, they rarely scale to handle job loads of complex network environments. They also lack sophisticated user interfaces and reporting tools that allow users to keep audit trails of job streams.

More importantly, home-grown job schedulers quickly turn into full-time programming commitments. As dependence increases on the tool, more and more features get added. The result is usually a varied mix of scripts, programs, and Unix utilities that only a few people actually understand. This causes a situation prone to problems.

Mainframe job scheduling is the complete opposite of Unix job scheduling. Mainframe tools provide robust scheduling capabilities that handle huge, complex job streams with ease. Mainframe schedulers group jobs into collections, treating the collection as a single entity whose execution, success, or failure can be tracked and used to trigger other jobs or collections of jobs. Users start jobs and job collection using time triggers or other criteria, such as creation of a file, mounting a tape, or the shutdown of a database. The job scheduler is aware of almost all activity within the system and can respond accordingly.

Using screen-oriented user interfaces, system operators can track the status of jobs, noting which are running long and which are completing. Using this interface, operators can suspend jobs, delay execution, restart jobs, and track schedule slippage. It's possible to alert an operator if a job exceeds a maximum run time, or if a job failed to start due to not met execution criteria.

Mainframe schedulers also offer good reporting tools. They create execution logs and report job failure and success. Analyzing these reports over a period of time lets users see trends, such as accounting job streams that take longer and longer to backup jobs that begin to press against the limits of back windows.

What to Look For in an Automated Job Scheduler

With the increase in jobs in all businesses and the need to have these jobs run more quickly, it makes sense and pays dividends to automate job scheduling. Automating job scheduling yields several tangible benefits:

Whether it's an NT/2000, Unix, mainframe, or something else, there are specific capabilities a good automated job scheduler should have.

A good scheduler supports non-temporal job triggers such as file creation of system alerts. Users must be able to suspend job stream, slip a schedule to another time of day, and cancel a single instance of a job without affecting its overall schedule. There should be no limit to the number of jobs that can be created, and the system should be easy to use with 10 jobs as it is with 10,000 jobs.

And the job scheduler should be not only a technical asset, but a business asset. It should reduce costs, increase productivity, and maximize efficiency so that IT can fulfill its mission of adding value to the business.

Several computing job scheduling architectures have emerged for heterogeneous, distributed environments: collaborative; master and agent; and variations of master and agent which include master, submaster, agent, and console, master and agent. Because there are many similarities between master and agent and its variations, one need complete the collaboraton with the master agent architectures.

Master and Agent Architecture

The traditional architecture for job scheduling solutions is the master and agent architectures. Schedulers using this model generally evolved from mainframe concepts. This architecture involved putting a full implementation of the job schedulers on one server, the master, and putting agents on a series of other series, the agents.

In the master and agent configuration, jobs are set up, scheduled and administered from the master server. The actual work is done on the agents. The agents communicate with the master throughout the job run as the master passes parameters and other critical data to the agent. Jobs might be partitioned among agents. As the job is passed from server to server, communications must be maintained between agents and master. This makes network availability critical to successful completion of jobs.

On the one hand, the master and agent central administration allows tight control over jobs. This benefit comes at the cost of central, top-down, rather than inflexible tree structure. On the other hand, the most significant limitation of master and agent systems is the requirement for the master and agents to remain in sync. When the network or central server is interrupted, how long will it take to reconstruct your activity? The well-known volatility of distributed networks is an important consideration when considering schedulers based on master/agent architecture.

A second area of concern is performance. In master and agent environments, communication continually flows between the master and each of the agents. As the work workload increases so does the network traffic. As the traffic increases, the potential for overload expands.

Another aspect to consider is scalability. A master can only support a limited number of agents, and this depends on the number of jobs to be run. Creating a new master or instance creates a new and separate administration. The more instances you create, the more management you need. When you create a new instance, you need to recreate all jobs. The process can take days, weeks, or even months. The process itself can lead to errors and failures at any point along the way. While the new instances can be managed by the same administrator, within reason, the inability to administer the entire job scheduling environment from a single point increases complexity, and the likelihood of confusion and errors.

This lack of scalability can affect your overall costs drastically. When you create a new master, you need to add new hardware at the master and agent levels. In a large enterprise, this could quickly grow to a $1 million problem.

Collaborative Architecture

Designed for distributed environments, the collaborative architecture leverages the combined computing power of networks. In collaborative architecture environments, a full copy of the job scheduler is carried out on every server on the network. With this technique, once a server is given parameters for a job, it can run independently.

Each server runs jobs independently of all others. Communication occurs for coordination and updates. It effectively uses network resources to combine mainframe-like robustness with distributed flexibility.

Administration in collaborative environments is flexible. You can manage your job scheduling from either a central point or at the local level.

Since the collaborative architecture was designed for distributed environments, it has many benefits. With a full working copy of the software on every server, network downtime has diminished affect. Jobs continue to run even during network outages. The same applies to individual servers. If one server crashes, all other servers in the network continue their jobs. Any interdependent jobs are held until the crashed server resumes activity.

Since jobs can run locally, network communications and overhead decrease. This decrease translates into improved network and system performance.

In a collaborative environment scaling can be limited to the size of your network. Some job schedulers might be able to handle 500 servers each running 1,000 jobs for a total of 500,000 jobs. Replicating jobs is straightforward. Based on logical views of jobs and the environment, even the most complex jobs can be replicated in minutes.

Another distinct advantage is the most efficient use of hardware resources. Typically, in a collaborative architecture, your total job scheduling overhead is about one percent of central processing unit resources on each server in the network. In master and agent profiles, you need a dedicated server for the job scheduler itself plus a backup server in case the master fails. This feature is in addition to resources used on each server. Because of the limits on scalability, each time you expand to a new master configuration, you need to add hardware and software for the job scheduling server.

CIO - Measure Your ROI!

The pressure on IT to produce promised savings and efficiencies from new technologies they implement will only increase. In an era of fiscal belt tightening, these pressures increase even more. To this end, automated job scheduling can alleviate some of these pressures while adding value to the business. The time has come to measure that value in terms of return on investment.

Open Source Job Scheduler - Wikipedia, the free encyclopedia

Open Source Job Scheduler Overview by JAMES MOHR

Job Scheduler a la carte -- an article for Linux magazine
Planning and scheduling jobs can mean a lot of work, especially if they are spread across multiple machines. Here’s a tool to make that task a lot easier.

The ability to perform a certain task at a specific time or at regular intervals is a necessary task for sys admins. The original cron daemon offers an easy method for job scheduling on Unix-based systems. Although cron has seen a number of improvements over the years, even the newer versions are designed for very basic scheduling. An administrator who wants to do anything unusual must either create a wrapper script or build the additional functionality into whatever script is started by cron.

Job Scheduling Tools - Job Scheduler Reviews - Job Scheduler Reviews

There are hundreds of job scheduling solutions to choose from today.  Below are the top job schedulers broken out by entry level price.  We are in the process of reviewing job scheduling solutions and will be publishing the results as they become available.

< $5,000

$5,000 to $15,000

$15,000 to $50,000

>$50,000

Job Schedulers - Enterprise Applications - Network Computing

Apr 1, 2005 - By Mike DeMaria

Job Schedulers Getting the Job Done

Stop relying on homemade solutions to keep your systems running on time. The six job scheduling programs we tested automate almost every administrative, maintenance and business process an enterprise requires. Here are a few items on your to-do list:

  1. Management wants the 15 servers' log files rotated and burned to CD the day following each business day. Make sure no backups failed.
  2. Sales wants all orders placed over the e-commerce system automatically tallied at day's end, e-mailed to the sales VP and faxed to the distribution plant. Notify the sales managers if any of the tasks fail along the way.
  3. The database administrator has set up his systems to start generating an extensive report at 3 a.m. so it's available by 10. If the report is going to be late, make sure he knows about it.
You could cobble together some programs to control these jobs. But your best bet is a good job-scheduling suite--one that lets you schedule, automate and monitor any number of tasks like these without your having to do the legwork. Jobs can include just about any administrative, maintenance or business processes, such as restarting services, rotating logs, backing up data, deleting temporary files, e-mailing invoices, sending notices of past-due balances and placing orders with business partners.

Of course, the tasks listed above aren't much of a challenge for an enterprise-class job scheduler. Does your company need an application to handle more complex tasks? Maybe you need to run several jobs in sequence on multiple machines. You want to run a job on the database server to query accounts, upload the output to an e-mail server and send e-mail to account holders, for instance. These job streams must run across several systems and departments. The job scheduler should handle failures midstream, even across machines. And a job failure and its resulting error code on Server A should influence which job runs next on Server B.

We asked eight vendors to send us their job-scheduling software for testing in our Syracuse University Real-World Labs®. Argent, BMC Software, Computer Associates International, Cybermation, Tidal Software and Vexus Consulting accepted our challenge. Hewlett-Packard said it doesn't have a product fitting our criteria, and IBM declined to submit its Tivoli software.

Five of the products we tested--the exception is Vexus Avatar--work similarly. A central scheduling server interacts with a database to store and schedule jobs. When it's time for a job to run, the scheduling server contacts a lightweight agent program, which signals the endpoints that will perform the job. The agent then executes a script and can return status codes and error information to the scheduling server. Additional jobs can be launched, a series of jobs can abort, or the scheduler can wait for an operator to take over. These products support failover to a backup scheduling server. Avatar works a bit differently, with each endpoint using a small, local scheduling server. As such, jobs can run independently without communicating to a central server at all.

Computer Associates and BMC make the most advanced products in this field. Although the difference in their Report Card scores is minuscule, CA Unicenter AutoSys Job Management 4.5 received our Editor's Choice award because it has slightly better access control and a simpler management interface, and it supports a few more client platforms.

Read On

Management, job control and reporting capabilities accounted for 95 percent of each product's Report Card grade. We saved only 5 percent of the score for price: We feel the other factors are more important, and the vendors' differing business models--based on such factors as usage time, number of processors and operating systems--make a fair pricing comparison difficult. If your large organization relies on job scheduling as a critical business process, high availability and scalability matter more than price. Conversely, in small environments with only a handful of servers, factors like scalability and role-based administration may not matter at all.

Our management category covers role-based administration, job-priority scheduling, management user interface and agent platform support. Role-based administration is especially important for installing a large job-scheduling product, creating groups and users, and granting access. Tidal Enterprise Scheduler, Argent Job Scheduler and CA Unicenter AutoSys can pull users and groups from the corporate directory.

We put heavy emphasis on the main tasks of setting up schedules and prioritizing jobs. Scheduling tasks include creating and combining multiple calendars, dealing with holidays, and deciding when jobs should run. Prioritizing refers to controlling how many resources jobs use. Jobs that are time-sensitive or critical should get higher priority.


Job Scheduler Features
Click to Enlarge



All the products we tested let you configure permit and deny calendars. A job runs whenever the permit calendars dictate--every Monday night, once per quarter or every business day, for instance. Deny calendars keep jobs from running and overrule the permit calendars if a job appears on both.



We were most impressed with Tidal Enterprise Scheduler's and Vexus Avatar's management interfaces, which located existing jobs and set job parameters easily.

Agent platform support is diverse. Every vendor supports Windows NT and above, and all but Avatar support Hewlett-Packard HP-UX, IBM AIX, Linux and Sun Solaris. Smaller and niche systems, like OpenVMS, Compaq Tru64 Unix and Dequent Dynix, get some support. Only CA's Unicenter AutoSys supports Mac OS X Server, a Unix derivative. Schedulers from CA, BMC, Cybermation and Tidal all offer mainframe support.

Job Control

In testing these programs, we focused on job-control tasks, such as prerequisite checks, job creation and error recovery. Job schedulers don't actually create the batch files to run on the end nodes; that's up to the IT staff. Instead, schedulers kick off a script, batch file or executable at the designated time. These programs must check for prerequisite conditions before running the job--say, checking disk space before starting a backup--and handling error recovery if the job fails. We were disappointed with the prerequrement capabilities of our top players, CA Unicenter AutoSys and BMC Control-M. They were limited to file checks and checking the status of a previously run job. By comparison, Cybermation's ESP Espresso had the best procedures for checking prerequisites. It could detect file presence and size changes; monitor the event log, text strings, processes, services, CPU utilization and disk usage; and perform SQL queries.

Creating a single job is relatively simple. Just give it a name and specify which command to run on which server. For job creation, we graded each package's ability to create and visualize complex environments with multiple jobs running on various servers. CA's Job Visualization add-on lets you see all jobs programmed into Unicenter AutoSys. When you click on any job, you can see all possible paths to that job and all paths after it. Without Visualization, you can't graphically see relationships between jobs at all.

In the error-recovery subcategory, BMC Control-M excels. If a job fails, Control-M provides a range of options, such as rerunning the job, changing variables, sending out alerts and running other jobs. You can set multiple branching options for error conditions and make extensive use of command error codes. Argent Job Scheduler likewise has good error recovery: You can act upon a range of error codes, rather than individual codes. Argent's product also tries to rerun a job a specified number of times over a set number of minutes or hours.

Cron + Perl != Job Scheduling

Why spend a quarter-million dollars on these programs when you can use cron, Perl scripts, SSH and a little shell programming?

If you just need to run basic standalone jobs, cron might be sufficient. However, cron has limitations that a dedicated job-scheduling product can overcome. Cron is like an alarm clock. At a certain time, it wakes up, kicks off a job and goes back to sleep until the next job comes along. You can't correlate one job to the next. Cron can't tell that your log-file rotation failed at 2 a.m. and you shouldn't delete the old log files at 4. It can't tell if a job has finished early or late, or whether to move the rest of the jobs up or down. Homemade solutions, meanwhile, may involve setting up checkpoints and writing additional script files, and ultimately will pose scalability and longevity problems. It's also hard to see the status of cron jobs when you're dealing with many interdependent servers.

The job schedulers we tested are a bridge between mainframe and Unix environments. You can now get mainframe job-management functionality on your Unix, Linux or Windows server. Vendors that have mainframe backgrounds or support mainframes in their job-scheduling suite fared better than the rest.

CA entered the job-scheduling field almost three decades ago, so it's no surprise that this version of Unicenter AutoSys Job Management reflects years of enhancements and experience. The package has an easy-to-use graphical interface for Unix and Windows admins, as well as a Web client for operators and technicians. The interface is one reason Unicenter AutoSys edged out BMC's functionally similar Control-M.

Management settings are found in the administration program, a Web-based operator's site, and, optionally, eTrust Access Control. We used the Web interface to create simple jobs, kick off new jobs and check the status of scheduled events. The eTrust software provides granular read, write and execute permissions on all aspects of the job-management suite. We could control jobs, calendars, machine access and reports on a user or group basis. Credentials are provided by native Windows authentication. AutoSys includes eTrust, but configuring that program isn't simple. If you don't install it, though, you can't take advantage of group access controls under Windows.

 We easily managed and scheduled related jobs from the main administration interface. To create a job, we specified a job name, the job owner, the command, dependencies and the machine. We liked the product's use of boxes for grouping jobs--a kind of batch job of batch jobs. Kicking off a box runs all jobs inside that box simultaneously, unless a job depends on the completion of a previous job.

Unicenter AutoSys has a unique method of failing over to a secondary job scheduling server: It uses a third machine for control purposes. This third server requires almost no resources--just a simple agent program that receives heartbeats from the job-scheduling servers. If you have the primary and backup scheduling server in different locations, the third machine determines if the primary actually failed, or if the secondary machine's network connection died. The three machines send one another heartbeat messages to confirm that the remote systems are up and the job scheduler is running. If the secondary machine can't reach the primary but can reach the third machine, it takes over as master. However, if the secondary can't reach the primary or third, it assumes that the problem is on the secondary's end and doesn't take over. Switching back from the secondary to the primary requires manual intervention.

You can configure Unicenter AutoSys not to use a third machine. In environments where job scheduling is critical or the backup server is separately located, the third machine is a powerful tool.

Unicenter AutoSys Job Management 4.5. Computer Associates International, (888) 423-1000, (631) 342-6000. www.ca.com

BMC and CA job schedulers are nearly equal in function and earned similar scores in our Report Card. BMC's Control-M for Distributed Systems offers excellent calendaring capabilities, late-job predictions and error recovery. However, the product is harder to administer than Unicenter AutoSys. Control-M has a Web interface for running and viewing jobs that helped raise its management score, but we prefer AutoSys' interface.

As with CA's product, we could use Control-M to bundle multiple jobs into a larger group. Creating a dependency between two jobs, such as running a log-rotate script before running a log-backup program, is as simple as dragging one job on top of another. Unfortunately, we couldn't specify file-existence, disk-usage, process-running or any other system-level dependencies. These functions must be handled within the batch scripts.

Predefined templates, which BMC calls skeletons, simplify job creation--individually or en masse--by propagating configuration fields automatically. Updates to the templates are sent to all jobs that use it.

Control-M provides multiple exit conditions for failures. The job can be rerun, a global variable modified, alerts thrown, e-mails sent or other jobs started. We specified the exit code and used text strings to define failures, and could detect and act when the Unix file copy command returned "No such file." Control-M integrates with BMC Patrol for alert management and automatic failover, though you don't need the Patrol suite for basic alerting. Unfortunately, without Patrol, failover from one scheduling server to a backup is a manual process. Built into Control-M is an alert console, similar to CA's scheduler. Alerts, which may be e-mailed, can be indicated as acknowledged and handled.

Control-M uses time heuristics to determine if a stream of jobs will be late. The software keeps tabs on how long each job is supposed to run. If a job upstream is running behind schedule, threatening to make a downstream job late past a certain threshold, the application triggers an alert. An operator can abort the job stream, halt other less vital jobs or find out why things are running late. The other products we tested determine lateness on a job-by-job basis.

Control-M. BMC Software, (800) 841-2031, (713) 918-8800. www.bmc.com

The excellent management interface on Enterprise Scheduler made this package one of our favorites to use. Tidal's suite also has the best documentation, with real examples and step-by-step instructions, but we want better reporting, job creation, visualization and error recovery.

To assign access control, Enterprise Scheduler uses security policies, which contain all the permissions you want to set. You assign users or groups to the policy from Active Directory. With this setup, it was easy to modify policies later and have the changes affect all relevant users.

As expected, Tidal's scheduler can create dependencies based on previous job status and global variables. The variables may be a string, number, date or Boolean value. A job can modify or read the variables. You also can create file dependencies, such as a log-rotation job that acts only when a log file larger than a certain size is present. Within a list of dependencies, we required all to evaluate as true, or at least one. However, we couldn't specify for at least two dependencies to be true, or create complex "and/or" statements.

The system can detect errors in three ways. Enterprise Scheduler supports exit codes, even letting you specify a range of exit codes for success or failure. A program's output can be piped to another program, and the error code of the piped program is used to determine success. Finally, you can do a pattern match on a program's output for success or failure. Although these functions can be handled inside the batch job, having it available inside the job scheduler is a bonus.

Tidal Enterprise Scheduler 5.0. Tidal Software, (877) 558-4325, 650-475-4600. www.tidalsoftware.com

A mixed bag, Cybermation ESP Espresso does the essential tasks of creating jobs and checking dependencies well, but this package needs better alerting and scheduling features. Its interface is great for some tasks and poor for others. It's easy to create jobs and visualize the job stream, for example, but the general system interface is difficult to use.

The job-creation component is put together well. Icons representing jobs can be dragged and dropped onto a canvas like a Visio diagram. This lets you see dependencies and the order of operations for a job; you can also monitor jobs in real time from this view.

ESP has the best dependency checking of the products we tested. We could monitor the event log, text strings in a file, processes running, services, CPU utilization and disk usage. We also could perform SQL queries. You can launch jobs based on the results of these monitors.

Access-control settings are available on a per-user or group basis. We copied permissions from one group to another and from one user to another. Permissions can be granted to jobs and calendars as well. For example, we let a user modify all calendars except for the "payroll" one.

ESP Espresso 4.2. Cybermation, (905) 707-4400. www.cybermation.com

With strong reporting and alerting engines, the Windows-only Argent Job Scheduler may be a good fit for small and midsize environments. To appeal to large enterprises, though, it needs better support for dependency checking, role-based administration and job-stream visualization.

The software pulls user and group information from the Active Directory domain or local computer when no domain is present. You can grant read, write, execute and control permissions per machine or per job class. A job class is a grouping of individual jobs; you can't set controls on individual jobs or calendars. This setup makes it difficult to visualize job dependencies, even though job classes can be used to organize job streams.

Argent's reporting and alerting, sent over e-mail or pagers, are better than the competition's. The alerts can play a sound for a set length of time, execute a command on the scheduling server's command line or send a Windows message alert to any Windows client. Alerts also can be sent to Argent Guardian, a separate monitoring and alerting product. You don't need Guardian for basic alerting. Reports can be created and sent on a calendar schedule as well.

The Argent Job Schftware, (860) 674-1700. www.argent.com

Vexus Avatar has two benefits: It's simple and inexpensive. Avatar doesn't offer many configuration options, and creating jobs with it is straightforward. The price runs as low as $500 per CPU. Vexus claims Avatar can compete at the same level as Unicenter AutoSys or Control-M, but we found the product's distributed setup a disadvantage in large environments. Avatar is best-suited for those looking for small-scale or simple batch management, or on machines that have limited communications with a central job scheduler.

Avatar is vastly different from the other products we tested. Instead of working with a model of dumb agents with a central scheduling server, Avatar agents operate independently. A full, yet lightweight, scheduling server is installed on every endpoint, which holds its own calendar, queues and job definitions. Agents are administered through a separate Web client, which connects to an Avatar server for administration only, not for triggering tasks. Jobs can be triggered across machines, and you can add multiple Avatar servers to a management interface, but there's no central machine for the actual job creation.

Avatar doesn't provide a mechanism for shared security settings, calendar, groups or jobs. Users authenticate against the local system password file or directory. It does not support groups, so access controls are set for individual users or for every authenticated user. Each machine can set "allow" or "deny" rules for file transfers, executing and monitoring jobs and setting dependencies on a per-host or -user basis. Jobs can be triggered across machines, but Avatar lacks intramachine visualization tools.

Avatar Job Scheduling Suite 4.5.5. Vexus Consulting Group, (416) 985-8554. www.vexus.ca

Michael J. DeMaria is an associate technology editor based at Network Computing's Syracuse University's Real-World Labs®. Write to him at mdemaria@nwc.com.

Keeping your systems running on time requires coordination of tasks, from backing up servers to generating sales reports. Although you can concoct an application to start operations and keep tabs on each job, the six job-scheduling suites we tested at Network Computing's Syracuse University Real-World Labs® automate the process.

We tested products from Argent, BMC Software, Computer Associates International, Cybermation, Tidal Software and Vexus Consulting, and graded their job-control and -reporting capabilities, as well as the ease with which we could manage the programs.

All the suites but Vexus' Avatar require a central server and database, in which the server uses an agent to trigger the start of each job on an endpoint. Avatar stores a scheduler on each endpoint and is better suited to small-scale operations.

The CA and BMC products earned very close Report Card scores for their sophisticated scheduling abilities. But CA's Unicenter AutoSys Job Management 4.5 won out for Editor's Choice because its management interface and extensive platform support were slightly better than those of BMC's Control-M.

To test the job schedulers, we used a dual 2.4-GHz Pentium Xeon system with 1 GB of RAM, running Windows 2000 Server SP4 as our job-scheduling server. A second machine ran as a backup. A 600-MHz Pentium III system with 256 MB of RAM running Windows 2000 Server SP4 served as our clients. If the vendor didn't supply a built-in database, we installed Microsoft SQL 2000 Service Pack 3a. For Linux tests, we used a Red Hat 9 system and installed some components of Vexus Avatar.

Our scheduled jobs comprised batch files and command-line executables, and we added a sleep command to some of the batch files to make some jobs run late. To determine how well a product can handle failure conditions, we made batch files terminate with nonzero exit codes.

All Network Computing product reviews are conducted by current or former IT professionals in our Real-World Labs® or partner labs, according to our own test criteria. Vendor involvement is limited to assistance in configuration and troubleshooting. Network Computing schedules reviews based solely on our editorial judgment of reader needs, and we conduct tests and publish results without vendor influence.

Job Scheduling, Batch Job, Workload, Enterprise Jobs, Process Scheduling, etc

Replacing your scheduling solution is easier than you think. With BMC CONTROL-M’s proven migration methodologies and IT Workload Automation leadership you can accomplish a whole lot more. BMC CONTROL-M, Yes it Does, Yes you Can!

Enterprise Job Scheduling and Application Performance by Tidal Software

Automating Job Scheduling and other datacenter tasks is a requirement for the complex datacenter. Yet, the integration between IT Systems using existing tools must be custom-coded or left undone, leaving the datacenter with increased security risk and a reliance on business users to monitor system health. A planned approach to job scheduling and datacenter automation should not only eliminate these risks and inefficiencies, but also reach across heterogeneous environments as a service platform for business process automation and infrastructure activities.

Tidal Software offers the easiest-to-use enterprise job scheduler – Tidal Enterprise Scheduler™ - for completely automating even the most complex batch processing across the complete enterprise. Customers consistently cite Tidal’s enterprise job scheduling software’s ease-of-use, support for complex heterogeneous environments and flexibility as reasons for selecting Tidal.

Tidal's job scheduling software has dramatically improved the performance of a wide range of systems for customers such as: order management, business intelligence, customer reporting, and more.

Twitter Weekly Updates for 2009-01-25

Recommended Links

General

Open source Implementations

Commercial Implementations:

Job Scheduling

Copyright © 1996-2009 by Dr. Nikolai Bezroukov. www.softpanorama.org was created as a service to the UN Sustainable Development Networking Programme (SDNP) in the author free time. Submit comments This document is an industrial compilation designed and created exclusively for educational use and is placed under the copyright of the Open Content License(OPL). Site uses AdSense so you need to be aware of Google privacy policy. Original materials copyright belong to respective owners. Quotes are made for educational purposes only in compliance with the fair use doctrine.

Disclaimer:

Last modified: February 25, 2010
